Ship Wiring & Marine Cable: Ships Power Cable MGSGO
Halogen-Free, Copper Shielded

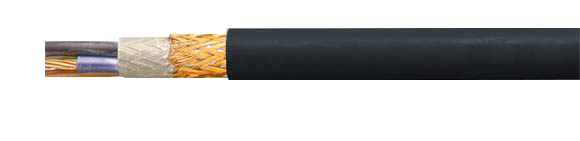

Ships Power Cable MGSG halogen-free, copper shielded, Ship Wiring & Marine Cables, Sealcon, European
Technical Data
  • According to VG 95218, part 60, shielded.
    The conductor insulation continues to function during a fire without the need for extra flame-proof taping.
  • Conductor Operating Temperature
    Max. +85°C/+185°F
  • Nominal Voltage U0/U 0.6/1 kV
  • Minimum Bending Radius
    Approx. 5x cable Ø

More... Cable structure Cable Construction

Application

 Application

Note

 Note

Properties

 Properties

No. of Conductors Selection
1
 1
2
 2
3
 3
4
 4

Part-No. Description & No. Conductors x cross-sec. mm2 Outer
Diameter 		Copper Weight
kg/km 		Weight
ca. kg/km 		AWG
59270
  MGSG 0.6/1KV 1x4 9.0 81.0 170.0 12
59271  MGSG 0.6/1KV 1x6 10.0 104.0 200.0 10
59272  MGSG 0.6/1KV 1x10 11.0 149.0 260.0 8
59273  MGSG 0.6/1KV 1x16 12.0 214.0 340.0 6
59274  MGSG 0.6/1KV 1x25 14.0 311.0 480.0 4
59275  MGSG 0.6/1KV 1x35 15.5 416.0 590.0 2
59276  MGSG 0.6/1KV 1x50 17.5 572.0 760.0 1
59277  MGSG 0.6/1KV 1x70 19.5 779.0 980.0 2/0
59278  MGSG 0.6/1KV 1x95 22.0 1034.0 1300.0 3/0
59279  MGSG 0.6/1KV 1x120 23.5 1316.0 1550.0 4/0
59280  MGSG 0.6/1KV 1x150 26.0 1615.0 1850.0 300 kcmil
59281  MGSG 0.6/1KV 1x185 28.5 1968.0 2300.0 350 kcmil
59282  MGSG 0.6/1KV 1x240 31.5 2506.0 2950.0 500 kcmil
59283  MGSG 0.6/1KV 1x300 34.4 3345.0 3600.0 600 kcmil
59284
  MGSG 0.6/1KV 2x1.5 15.0 105.0 340.0 16
59285  MGSG 0.6/1KV 2x2.5 16.0 132.0 400.0 14
59286  MGSG 0.6/1KV 2x4 17.0 170.0 460.0 12
59287  MGSG 0.6/1KV 2x6 18.5 217.0 570.0 10
59288  MGSG 0.6/1KV 2x10 20.0 307.0 720.0 8
59289  MGSG 0.6/1KV 2x16 22.5 471.0 940.0 6
59290  MGSG 0.6/1KV 2x25 26.5 670.0 1300.0 4
Part-No. Description & No. Conductors x cross-sec. mm2 Outer
Diameter 		Copper Weight
kg/km 		Weight
ca. kg/km 		AWG
59291
  MGSG 0.6/1KV 3x1.5 15.5 125.0 380.0 16
59292  MGSG 0.6/1KV 3x2.5 16.5 161.0 440.0 14
59293  MGSG 0.6/1KV 3x4 18.0 215.0 520.0 12
59294  MGSG 0.6/1KV 3x6 19.0 282.0 640.0 10
59295  MGSG 0.6/1KV 3x10 21.5 417.0 840.0 8
59296  MGSG 0.6/1KV 3x16 24.0 636.0 1110.0 6
59297  MGSG 0.6/1KV 3x25 28.0 924.0 1610.0 4
59298  MGSG 0.6/1KV 3x35 31.0 1233.0 2020.0 2
59299  MGSG 0.6/1KV 3x50 35.0 1703.0 2610.0 1
59300  MGSG 0.6/1KV 3x70 39.0 2413.0 3450.0 2/0
59301  MGSG 0.6/1KV 3x95 45.5 3191.0 4710.0 3/0
59302  MGSG 0.6/1KV 3x120 49.5 3975.0 5680.0 4/0
59303
  MGSG 0.6/1KV 4x4 19.0 284.0 620.0 12
59304  MGSG 0.6/1KV 4x6 20.5 371.0 750.0 10
59305  MGSG 0.6/1KV 4x10 23.0 545.0 1010.0 8
59306  MGSG 0.6/1KV 4x16 26.0 796.0 1400.0 6
59307  MGSG 0.6/1KV 4x25 30.5 1170.0 2000.0 4
59308  MGSG 0.6/1KV 4x35 34.0 1578.0 2530.0 2
59309  MGSG 0.6/1KV 4x50 38.5 2278.0 3280.0 1
59310  MGSG 0.6/1KV 4x70 44.0 3090.0 4450.0 2/0
59311  MGSG 0.6/1KV 4x95 50.5 4110.0 5930.0 3/0

Cable Construction  to top up arrow
  • Stranded copper conductors
  • Heat resistant EPR insulation 3Gl3, to DIN VDE 0207 part 20
  • Conductors stranded in layers with optimal lay-length
  • Filling compound covering all conductors
  • Foil shield
  • Plain copper braided shield
  • Polyester tape
  • Chloroprene based outer jacket 5GM3, to DIN VDE 0207 part 21
  • Jacket color: Black
Properties
 to top up arrow
  • Halogen-free and flame retardant
  • Color code
    1 conductor: black
    2 conductors: black/blue
    3 conductors: black/blue/brown
    4 conductors: black/blue/brown/black
Note  to top up arrow
  • AWG sizes are approximate equivalent values. The actual cross-section is in mm².
Application  to top up arrow

Halogen-free power cables for marine craft are used for permanent installation on ships in all rooms and open decks as control and power cables.
