European Servo, Feedback & Motor Cable:

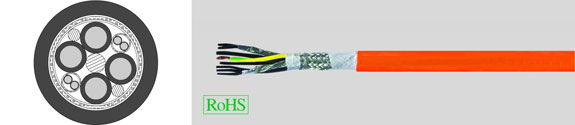

TOPSERV® 119 PVC

Servo Cable with 2 signal pair analogue
Indramat Standard with PVC-sheath for fixed or not constantly movements 0,6/1k

Sealcon, Inc, European & Domestic cable

TOPSERV 109, Jacket PUR, Halogen-Free, VDE Reg No., UL/CSA, Highly Flexible Two Approvals, Drag Chain Motor Supply Cable, European  , Sealcon
European Part-No. Description & No. Conductors x cross-sec. mm2 Outer
Diameter
mm
SIEMENS
Part No.
Copper Weight
kg/km
Weight
ca. kg/km
AWG

707290

TOPSERV 119 (4 G 1 + 2 x (2 x 0,75))

12.0 6FX8008-1BB11 130.0 218.0 -

707291

TOPSERV 119 (4 G 1,5 + 2 x (2 x 0,75))

12.4 6FX8008-1BB21 155.0 256.0 -

707292

TOPSERV 119 (4 G 2,5 + 2 x (2 x 1,0))

14.6 6FX8008-1BB31 216.0 346.0 -

707293

TOPSERV 119 (4 G 4 + (2 x 1,0) + (2 x 1,5))

16.0 6FX8008-1BB41 297.0 443.0 -

707294

TOPSERV 119 (4 G 6 + (2 x 1,0) + (2 x 1,5))

18.8 6FX8008-1BB51 374.0 596.0 -

707295

TOPSERV 119 (4 G 10 + (2 x 1,0) + (2 x 1,5))

22.4 6FX8008-1BB61 545.0 825.0 -

707296

TOPSERV 119(4 G 16 + 2 x (2 x 1,5))

26.9 6FX8008-1BB25 804.0 1217.0 -
Technical Data European
  • Special PVC Motorcable  acc. to UL AWM Style 2570 and 21179 CSA AWM
  • Temperature Range
    Flexing
    -0°C to +60°C (32°F to +140°F)
    Fixed Installation
    -20°C to +80°C (-4°F to +176°F)
  • Nominal Voltage
    Acc. to UL/CSA 1000 V
  • Power Supply Conductors
    Acc. to VDE U0/U 600/1000 V
  • Power Supply Conductors
    1000 V
  • A.C. Test Voltage, 50 Hz
    power supply conductors 4000 V
    control conductors 1000V
  • Minimum Bending Radius
    Flexing approx. 15x cable Ø
    Fixed Installation approx. 5x cable Ø
  • max 100.000 cycles
Approvals
RoHSUL CSA CE PCT desinadragchain
Cable Construction
  • Bare copper, fine wire conductors acc. to DIN EN 60228 cl. 5
  • Conductor insulation Polypropylen until 6mm²; PVC from 10mm²
  • Black power supply conductors with white imprint
  • Green-yellow grounding
  • Power supply conductors laid up with optimal lay length and stabilising filler
  • Overall shielding from tinned copper braid, optimal. coverage approx. 85%
  • PVC outer jacket
  • Jacket color orange (RAL 2003) according to DESINA®
  • with meter marking, change-over in 2011
Application
Low cost alternativ to supply cables with PUR Jacket for fix instalation or occasional moving applications. The combination of feeder conductors with the control conductors for the braking function in these cables is ideal.
The cables have an overall shield to ensure EMC compatibility, i.e. for protection against electromagnetic interference. Production is based on the specifications of established manufacturers of servo-drives and controls, as well as on various VDE, UL and CSA standards. Applications include machine, plant and robot construction, automation, drive, control and production engineering.
Attractive for export-oriented mechanical and system engineering./n
To optimize the EMC features we recommend a large round contact of the copper braiding on both ends./n
CE = The product is conformed with the EC Low-Voltage Directive 2006/95/EG.
Properties
  • Low capacitance until 6mm²(included)
  • Oil resistant PVC outer jacket
  • PVC jacket flame retardant according to VDE 0482-332-1-1 to -1-3
  • Optimum compliance with requirements for electromagnetic compatibility (EMC) by approx. 85% coverage from the braided shield
  • The materials used in manufacture are cadmium-free and contain no silicone and free from substances harmful to the wetting properties of lacquers
  • These cables are produced to high quality specifications and conform to the DESINA® standard
Note
  • the corresponding Encoder cables mit PVC Jacket can be found under heading TOPGEBER® 511 PVC
  • the Motorcables for application in cable track with PUR Jacket can be found  under heading TOPSERV® 113 PUR
  • Brackets ( ) indicate shield.
  • SIEMENS product designations 6FX 5008-  are registered trademarks of Siemens AG, and are to be used only for purposes of comparison.
  • LENZE product designations  are registered trademarks of LENZE AG, and are to be used only for purposes of comparison.
  • Desina®: Explanation: see introduction
Cable Accessories
  • Coming Soon!
