European Servo, Feedback & Motor Cable:

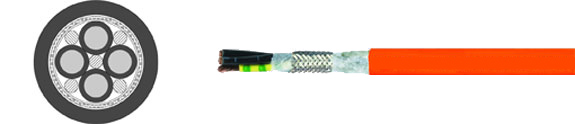

TOPSERV® 108 PVC

Motor cable w/o pair
PVC outer sheath for fixed or not contant movements
According to SIEMENS Standard 6FX 8008-plus 0.6/1kV

Hi-Tech Controls, Inc, European wires and cables

TOPSERV 109, Jacket PUR, Halogen-Free, VDE Reg No., UL/CSA, Highly Flexible Two Approvals, Drag Chain Motor Supply Cable, European  , Hi-Tech Controls
European Part-No. Description & No. Conductors x cross-sec. mm2 Outer
Diameter
mm
SIEMENS
Part No.
Copper Weight
kg/km
Weight
ca. kg/km
AWG

707250

TOPSERV 108 4G1.5

8.0 6FX8008-1BB11 78.0 118.0 16

707251

TOPSERV 108 4G2.5

9.6 6FX8008-1BB21 130.0 179.0 14

707252

TOPSERV 108 4G4

11.0 6FX8008-1BB31 198.0 260.0 12

707253

TOPSERV 108 4G6

13.1 6FX8008-1BB41 288.0 638.0 10

707254

TOPSERV 108 4G10

19.3 6FX8008-1BB51 463.0 705.0 8

707255

TOPSERV 108 4G16

23.3 6FX8008-1BB61 701.0 1055.0 6

707256

TOPSERV 108 4G25

26.9 6FX8008-1BB25 1068.0 1509.0 4

707257

TOPSERV 108 4G35

30.3 6FX8008-1BB35 1449.0 1976.0 2

707258

TOPSERV 108 4G50

34.5 2096.0 2781.0 2710.0 1
Technical Data European
  • Special PVC Motorcable  acc. to UL AWM Style 2570 and CSA AWM
  • Temperature Range
    Flexing
    -0°C to +60°C (32°F to +140°F)
    Fixed Installation
    -20°C to +80°C (-4°F to +176°F)
  • Nominal Voltage
    Acc. to UL/CSA 1000 V
    Acc. to VDE U0/U 600/1000 V
  • A.C. Test Voltage, 50 Hz
    power supply conductors 4000 V
  • Minimum Bending Radius
    Flexing approx. 15x cable Ø
    Fixed Installation approx. 5x cable Ø
  • max 100.000 cycles
Approvals
RoHSUL CSA CE PCT VDE desinadragchain
Cable Construction
  • Bare copper, fine wire conductors acc. to DIN EN 60228 cl. 5
  • Conductor insulation Polypropylen until 6mm²; PVC from 10mm²
  • Black power supply conductors with white imprint
  • Green-yellow grounding
  • Power supply conductors laid up with optimal lay length and stabilising filler
  • Overall shielding from tinned copper braid, optimal. coverage approx. 85%
  • PVC outer jacket
  • Jacket color orange (RAL 2003) according to DESINA®
  • with meter marking, change-over in 2011
Application
low cost alternativ to Motorcables with PUR Jacket for fix instalation.The cables have an overall shield to ensure EMC compatibility, i.e. for protection against electromagnetic interference. Production is based on the specifications of established manufacturers of servo-drives and controls, as well as on various VDE, UL and CSA standards. Applications include machine, plant and robot construction, automation, drive, control and production engineering.
Attractive for export-oriented mechanical and system engineering.
EMC = Electromagnetic compatibillity
To optimize the EMC features we recommend a large round contact of the copper braiding on both ends. /n
CE = The product is conformed with the EC Low-Voltage Directive 2006/95/EG.
Properties
  • Low capacitance until 6mm²(included)
  • Oil resistant PVC outer jacket
  • PVC jacket flame retardant according to VDE 0482-332-1-1 to -1-3
  • Optimum compliance with requirements for electromagnetic compatibility (EMC) by approx. 85% coverage from the braided shield
  • The materials used in manufacture are cadmium-free and contain no silicone and free from substances harmful to the wetting properties of lacquers
  • These cables are produced to high quality specifications and conform to the DESINA® standard
Note
  • the corresponding Encoder cables mit PVC Jacket can be found under  heading TOPGEBER® 511 PVC
  • the Motorcables for application in cable track with PUR Jacket can be found  under heading TOPSERV® 108 PUR
  • Brackets ( ) indicate shield.
  • SIEMENS product designations 6FX 5008-  are registered trademarks of Siemens AG, and are to be used only for purposes of comparison.
  • Desina®: Explanation: see introduction
Cable Accessories
  • Coming Soon!
Cable Technical Data Construction and ApplicationProperties and Note Accessories
