DLO Diesel Locomotive Cable

Hi-Tech Controls, Inc, European & Domestic cable


DLO Diesel Locomotive Cable UL/CSA

DLO Diesel Locomotive Cable HTC-DLO | DLO Diesel Locomotive Cable UL, CSA, MSHA, DLO Cable, DLO, Cable, Hi-Tech Controls

PDF

Printable PDF

APPLICATIONS AND FEATURES

HTC-DLO (Diesel Locomotive Cable) is a 2kV flexible power cable with a variety of possible applications such as but not limited to: Drilling rigs, railroad and transit car wiring, mining and other industrial equipment, and as flexible motor leads and wind turbine applications. The cable is suited for use in wet and dry areas, conduits, ducts, troughs, trays, and where superior electrical properties are desired. The maximum continuous conductor temperature for normal operation is 90°C wet or dry. Hi-Tech Controls Diesel Locomotive Cable is oil, heat, flame, abrasion, and sunlight resistant. Approved for use per the NEC® as Type RHH/RHW-2 and per the CE Code as 2kV Type RW90.


SPECIFICATIONS:

  • ASTM B3 - Soft or Annealed Copper
  • B172 - Rope-Lay-Stranded Copper Conductors Having Bunch Stranded Members
  • UL Subject 2806 - Type HDFPC-DLO (Diesel Locomotive Cable)
  • UL 44 - Type RHH/RHW-2
  • CSA C22.2 No. 38 - Type RW90. (#12 and #10 AWG are not RW90
  • MSHA - P-07-KA100013
  • IEEE 1202/FT4 - Flame Test (70,000 Btu/hr Vertical Tray Test). #8 and larger CSA. 1/0 and larger UL
  • UL 1685 - Vertical-Tray Fire-Propagation and Smoke-Release Test
  • ICEA S-95-658 (NEMA WC70) Power cables rated 2000 volts or less for the distribution of electrical energy.
DLO Diesel Locomotive Cable HTC-DLO  DLO Diesel Locomotive Cable UL, CSA, MSHA, DLO Cable, DLO, Cable, Hi-Tech Controls
DLO Diesel Locomotive Cable HTC-DLO DLO Diesel Locomotive Cable UL, CSA, MSHA, DLO Cable, DLO, Cable, Hi-Tech Controls

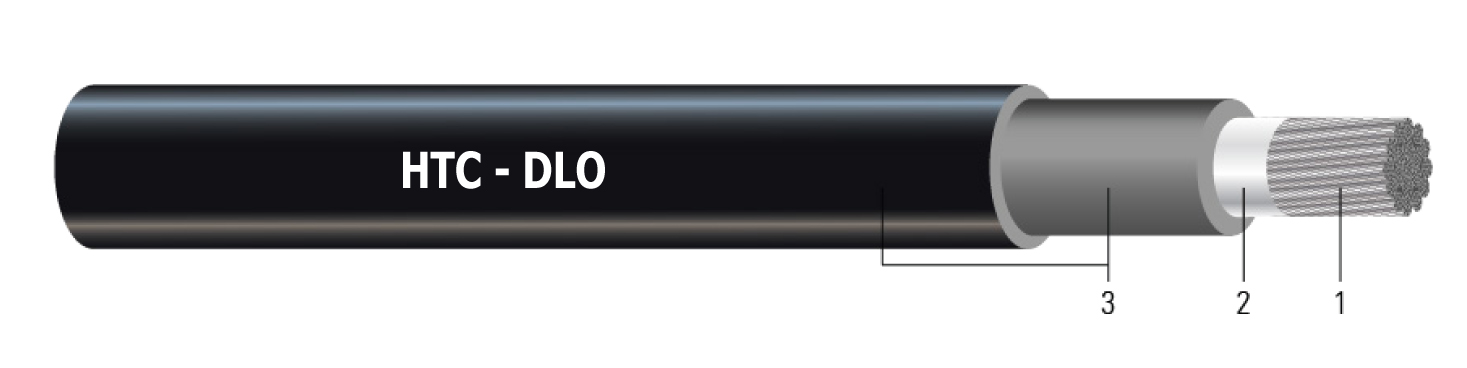

CONSTRUCTION:
  1. Conductors: Flexible Stranded Rope-Lay Class I Tinned Copper per ASTM B33 and B172
  2. Binder Tape: Mylar Tape
  3. Insulation: 2 layer Thermoset Ethylene Propylene Diene Monomer / Thermoset Chlorinated Polyethylene (EPDM/CPE)

For questions or to place a order please call 1-800-677-8942 Or Email

HTC Part Number Size Conductor Strands No./(inch or AWG) Overall Diameter Inches (3) Bend Radius Inches
HTC-DLO-14-1
HTC-DLO-12-1 12-1/C 19/.0185 0.21 1.68
HTC-DLO-10-1 10-1/C 0.26/#24 0.265 2.12
HTC-DLO-8-1 8-1/C 41/#24 0.33 2.63
HTC-DLO-6-1 6-1/C 63/#24 0.37 2.98
HTC-DLO-4-1 4-1/C 105/#24 0.44 3.37
HTC-DLO-2-1 2-1/C 161/#24 0.495 4.03
HTC-DLO-1-1 1-1/C 210/#24 0.56 4.48
HTC-DLO-1/0-1 1/0-1/C 266/#24 0.645 5.52
HTC-DLO-2/0-1 2/0-1/C 342/#24 0.69 5.76
HTC-DLO-3/0-1 3/0-1/C 418/#24 0.76 5.81
HTC-DLO-4/0-1 4/0-1/C 532/#24 0.815 6.47
HTC-DLO-262-MCM 262-MCM 649/#24 0.915 7.73
HTC-DLO-313-MCM 313-MCM 775/#24 0.98 8.36
HTC-DLO-373-MCM 373-MCM 925/#24 1.04 8.71
HTC-DLO-444-MCM 444-MCM 1100/#24 1.105 9.32
HTC-DLO-535-MCM 535-MCM 1325/#24 1.205 9.6
HTC-DLO-646-MCM 646-MCM 1600/#24 1.29 10.28
HTC-DLO-777-MCM 777-MCM 1924/#24 1.38 10.91
HTC-DLO-929-MCM 929-MCM 2300/#24 1.471 11.77
HTC-DLO-1111-MCM 1111-MCM 2750/#24 1.73 14.08
