Flat Cable


Every day we go through the motions: snooze the alarm – twice, perform all the hygienic tasks we learned as children and grab a coffee to go as we make our way to work. Once we reach the office, we grab another cup of coffee and begin answering emails. The day goes on and you successfully complete your assignments, so you begin your commute back home to spend time with family or to go to happy hour with a few friends.

Whatever your day looks like, there is a system you follow, and if your system is faulty – say the office coffee pot is broken – then your day doesn’t run as smoothly.

Much like conveyor systems, you need proper functionality to accomplish daily tasks. This is why it’s so important to install the proper equipment. When it comes to conveyor systems and trailing cables for crane installations, you need oil resistant cables with small bending radii and high flexibility.

Expert and proper installation is important to ensure accurate operation, so please contact us to request the corresponding instructions.

Hi-Tech offers the following four Neoprene and PVC flat cables:

NEO-Flat-C
NEO-Flat
PVC-Flat-CY
PVC-Flat

Find technical data, cable structure and more about these cables  on our website!

Tray Rated Cables

NFPA 79 Tray Rated CablesHi-Tech Controls introduces our new catalog for NFPA 79 Compliant Tray Rated Cables for Factory Automation. We have also improved our website to include all of the NFPA 79 Compliant Tray Rated Cables  in one location.

H05SS-F / H05SST-F Flexible Heat Resistant Multi Conductor Cable

H05SS-F_H05SST-F

http://www.hitechcontrols.com/cables/heat_resistant_cables/multi_core/h05ssf_h05sstf.html

Application
Multi conductor cables insulated and shielded with heat resistant silicone rubber without strain relieving elements are used at high temperatures or with contact to hot surfaces. These cables are installed for fixed installation, mechanically protected, for internal wiring of lighting fixtures in industrial application. It is recommended for the application of the apparatus which are moving during the operation with less mechanical stress.
The product is conformed with the EC Low-Voltage Directive 73/23/EEC and 93/68/EEC.

Cable Construction
• Tinned or bare copper conductor, stranded to DIN VDE 0295 cl. 5, BS 6360 cl. 5, HD 383 cl. 5 and IEC 60228
• SiR conductor insulation, cross linked (rubber compound) E I2 to DIN VDE 0207 part 20
• Conductor identification to DIN VDE 0293-308
• Green-yellow grounding, 3 conductors and above
• Conductors stranded in layers with optimal lay-length
• Outer jacket of cross linked EM9 (rubber compound) to HD 22.3 S3 : 1994 / A1 : 1999
• Jacket color: Black (RAL 9005)
• Also available in other jacket colors

Properties
• Behavior in fire: Test of vertical flame-propagation to DIN VDE 0482 part 265-2-1 and DIN EN 50265-2-1, not valid for the cables with polyester braiding (Type H05SST-F)
• Advantages: Minimal changes of dielectric strength and the insulation resistance also at high temperatures
• For laying as a fixed installation only in open or ventilated pipe systems as well as in ducts. Otherwise the mechanical properties of the silicon are reduced by the enclosed air at temperatures exceeding +90°C/+194°F. These cables may be damaged by pulling over sharp-edges or by abrasion during the installation and application. To avoid this, it should be treated with great care during the installation and application of the cable.

Technical Data
• Heat-resistant multi conductor cable to DIN VDE 0282 part 15, HD 22.15 S1
• Temperature Range Fixed Installation -60°C to +180°C (-76°F to +356°F)
(+250°C/482°F for short time)
• Temperature Limit At conductor in operation +180°C/+356°F
• Nominal Voltage U0/U 300/500 V
• Test Voltage 2000 V
• Specific Volume Resistive Min. 200 MOhm x km
• Minimum Bending Radius Flexing 7.5x cable Ø, Fixed Installation 4x cable Ø
• Radiation Resistance Up to 20×106 cJ/kg (up to 20 Mrad)

MULTISPEED® 500-PVC UL/CSA

PVC Control Cable for Drag Chain/TrackMULTISPEED_500-PVC_UL








http://www.hitechcontrols.com/cables/control_cable/drag_pvc/multispeed_500_pvc_ul_csa.html

High Flexible, Safety Against High Bending in Drag Chain/Track Cable Systems, Low Torsion, Low Torsion, EMI Preferred Type

Application:

UL/CSA approved HELUKABEL® MULTISPEED 500-PVC are installed where the extreme requirements for the cables are necessary. Designed for the export-orientated machinery manufacturer, specifically for USA and Canada. The selected materials and lay-up technique permit these high flexible cables for permanent application in drag chains for long distances, high and slow speed of movements.
These high flexible PVC control cables are suitable for shift and bending stresses in machines and machine tool constructions. These are installed in dry and moist rooms with free movement without tensile stress or forced movements.

Properties:

• PVC self-extinguishing and flame retardant according to VDE 0482-332-1-2, DIN EN 60332-1-2 / IEC 60332-1 (equivalent DIN VDE 0472 part 804 test method B) VW1, FT1
• Low-adhesion High property of alternating bending strength
• Long life durability due to low friction-resistance
• Better chemical resistance
• Oil resistance High stability Higher economical solution
• Reduced Ø, results low weight of moving materials
• The materials used in manufacture are cadmium-free, contain no silicone and are free from substances harmful to the wetting properties of lacquers

Control Cable: JZ-603

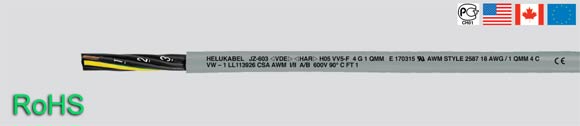

JZ-603-THREENORM

UL-CSA-HAR approved cables
http://www.hitechcontrols.com/cables/control_cable/pvc/jz_603.html
Flexible, 3 Approvals Control Cable (THREENORM), RoHS, Deca BDE

  • Oil resistant as per HD/EN 60811-2-1, UL 1581 part 50.182
  • PVC self-extinguishing and flame retardant according to VDE 0482-332-1-2, DIN EN 60332-1-2 / IEC 60332-1 (equivalent DIN VDE 0472 part 804 test method B)
  • The materials used in manufacture are cadmium-free, contain no silicone and are free from substances harmful to the wetting properties of lacquers
  • Bare copper, fine wire conductors
  • Special PVC conductor insulation TI1
  • Black conductors with white continuous numbering, Green-yellow grounding in the outer layer

Control Cable: JZ-600-Y-CY UL/CSA

Flexible, Number Coded, 0.6/1kV, Copper-Shielded, EMI Preferred Type

JZ-600-Y-CY_UL_CSA

http://www.hitechcontrols.com/cables/control_cable/pvc_shielded/jz-600_y_cy_ul_csa.html

Application:

Wiring cable for measuring and controlling purposes in tool machinery, conveyor belts and production lines, for plant installations, air conditioning and in steel production plants and rolling mills. Suitable for installation for flexible use for medium mechanical stresses with free movement without tensile stress or forced movements in dry, moist and wet rooms as well as outside (fixed installation). Is not suitable to be used as direct burial or as underwater cable. Interference-free transmission of signals and pulses is assured by the high degree of shielding.
EMI = Electromagnetic Interference
To optimize the EMI features we recommend a large round contact of the copper braiding on both ends.

Properties

  • Extensively oil resistant
  • For chemical resistance, see table Technical Information
  • Resistant to ultra violet rays (building with black jacket)
  • PVC self-extinguishing and flame retardant according to DIN VDE 0482-332-1-2, DIN EN 60332-1-2 / IEC 60332-1 (equivalent DIN VDE 0472 part 804 test method B) VW1, FT1
  • The materials used in manufacture are cadmium-free, contain no silicone and are free from substances harmful to the wetting properties of lacquers

Cable Construction

  • Bare copper, fine wire conductors according to DIN VDE 0295 cl. 5, BS 6360 cl. 5 and IEC 60228 cl. 5
  • Special PVC conductor insulation TI2, to DIN VDE 0281 part 1, class 43 UL Std. 1581
  • Black conductors with sequential numbering imprinted in white, according to DIN VDE 0293
  • Green-yellow earth conductor in the outer layer (3 conductors and above)
  • Conductors stranded in layers with optimal lay-length
  • PVC-insulated inner jacket TM2, to DIN VDE 0281 part 1, class 43 UL-Std. 1581
  • Braided shielding of tinned copper wires, coverage approx. 85%
  • Special PVC outer jacket TM2, to DIN VDE 0281 part 1 class 43 UL Std. 1581
  • Color: Black (RAL 9005) or Gray (RAL 7001)

Technical Data

  • Special PVC control cables
  • Adapted to DIN VDE 0276 part 627, DIN VDE 0281 part 13, with insulation thickness for 1 kV type and UL Std. 758 Style 21179
  • Temperature Range: Flexing -5°C to +80°C (+23°F to +176°F), Fixed Installation -40°C to +90°C (-40°F to +194°F)
  • Nominal voltage U 1000 V
  • Test voltage 4000 V
  • Breakdown voltage min. 8000 V
  • Insulation Resistance Min. 20 MOhm x km
  • Power Rating According to DIN VDE 0298
  • Minimum Bending Radius Flexing 10x cable Ø, Fixed Installation 5x cable Ø
  • Radiation Resistance Up to 80×106 cJ/kg (up to 80 Mrad)
  • Coupling Resistance Max. 250 Ohm/km

Control Cable: JZ-600 UL/CSA

JZ-600_UL_CSA
http://www.hitechcontrols.com/cables/control_cable/pvc/jz_600_ul_csa.html

Flexible, Number Coded, 0.6/1kV, UL & CSA Approved, AWG: 20 – 4, RoHS, Deca BDE, Extensively oil resistant For Chemical Resistance, see table Technical Information Resistant to ultra violet rays (building with black jacket), PVC self-extinguishing and flame retardant, cadmium-free, contain no silicone and are free from substances harmful to the wetting properties of lacquers.

PVC Control Cable: JZ-500

JZ-500

• Flexible, number coded, oil resistant
Applications: tool machines, conveyor belts, production lines in machinery production, air-conditioning, steel production

Clean Room approved

JZ-500-HMH (Halogen Free)PVC Control Cable

JZ-500-HMH-Halogen Free http://www.hitechcontrols.com/cables/halogen_free_security_cables/control/jz_500_hmh.html

• Flexible Control Cable, Halogen-Free, Extremely Fire Resistant, Oil Resistant
• Halogen-free flexible control cable, adapted to E DIN VDE 0281 part 14 …and DIN VDE 0281 part 13
• Temperature Range: Flexing -15°C to +70°C (+5°F to +158°F), Fixed Installation
-40°C to +70°C (-40°F to +158°F)
• Nominal Voltage U0/U 300/500 V
• Test Voltage 2000 V
• Minimum Bending Radius: Flexing approx. 12.5x cable Ø, Fixed Installation approx. 4x cable Ø
• Radiation resistance: Up to 100×106 cJ/kg (up to 100 Mrad)
• Applications: tool machines, coveyor belts, production lines in machinery production, air-conditioning, steel production

Clean Room approved

Intrinsically Safe Cable, Control Cable: OZ-BL-CY

OZ-BL-CY-Intrinsic-Safety
Outer Jacket Blue, Intrinsic Safety, Flexible, EMI Preferred Type

http://www.hitechcontrols.com/cables/control_cable/intrinsic_safe/oz_bl_cy.html

Application:

For hazardous areas the cables with special marking (blue) (hazard type-i-) used as flexible control and measuring cables to meet the requirements for the installation of electrical apparatus. These installations are not grounded and require a separate power circuit. Those cables are not suitable for underground laying.
The copper braided shielding ensures the transmission of data signals and free from interference.
EMI = Electromagnetic Interference
To optimize the EMI features we recommend a large round contact of the copper braiding on both ends.
CE= The product is conformed with the EC Low-Voltage Directive 73/23/EEC and 93/68/EEC

Cable Construction

  • Bare copper, fine wire conductors bunch stranded to DIN VDE 0295 cl. 5, BS 6360 cl. 5 and IEC 60228 cl. 5
  • Conductor insulation of special PVC Z 7225
  • Black conductors with white continuous figure imprint to DIN VDE 0293 without ground conductor
  • Conductors stranded in layers with optimal lay-length
  • Conductor wrapping of plastic foil
  • Braiding, tinned copper wire shielding, approx. 85% coverage
  • Special PVC outer jacket TM2, to DIN VDE 0281 part 1 and HD 21.1
  • Color: Blue (RAL 5015)

Properties

  • Extensively oil resistant
    Chemical Resistance – see table Technical Information.
  • PVC self-extinguishing and flame retardant according to VDE 0482-332-1-2, DIN EN 60332-1-2 / IEC 60332-1 (equivalent DIN VDE 0472 part 804 test method B)
  • The materials used in manufacture are cadmium-free, contain no silicone and are free from substances harmful to the wetting properties of lacquers

Technical Data

  • Control cable, special PVC with blue outer jacket for hazardous areas to hazard type -i- (=intrinsically safe)
  • For intrinsically safe installation marking as per DIN EN 60079-14 and IEC 60079-14 section 12.2.2 (VDE 0165 part 1)
  • Temperature Range Flexing -5°C to +80°C (+22°F to +176°F), Fixed Installation  -40°C to +80°C (-40°F to +176°F)
  • Nominal Voltage U0/U 300/500 V
  • Test Voltage 3000 V
  • Breakdown Voltage min. 6000 V
  • Insulation Resistance Min. 20 MOhm x km
  • Mutual Capacitance Conductor/conductor approx. 140 nF/km, Conductor/screen approx. 187 nF/km
  • Inductance approx. 0.68 mH/km
  • Coupling Resistance Max. 250 Ohm/km
  • Minimum Bending Radius Flexing 10x cable Ø Fixed Installation 5x cable Ø
  • Radiation Resistance Up to 80×106 cJ/kg (up to 80 Mrad)\
