Home Page|Enclosures for Offshore Applications|Enclosures w/ Metric Knockouts |

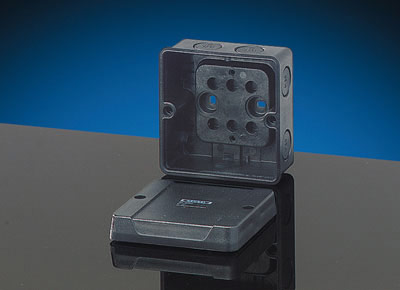

KD 5020 - Enclosure Box for Offshore Applications w/ Metric Knockouts |
|
- saltwater-proof
- acid-resistant lid screws made of stainless steel
- without terminals
- burning behavior 960° C; UL Subject 94: 5 V
|
| degree of protection |
IP 66 / IP 67
temporary submersion up to 1 meter, max. 15 minutes |
|
| material |
impact-resistant PC 5 polycarbonate |
|
| mounting width |
59 mm |
|
| mounting height |
66 mm |
|
| max. installation depth |
37 mm |
|
| color |
black RAL 9011 |
|
| cable entry |
cable/conduit entry via metric knockouts |
|
|
|
KD5020 Features & Applications |
High quality Thermoplastic PC 5 (Polycarbonate):
- Impact Resistant
- Halogen-free and Silicone-free
- UV-resistant
- Fire-resistant & Self-extinguishing
- Low toxicity
- IP 66 / IP 67
- Color Black RAL 9011
- RoHS Compliant
- Cable entry via Metric knockouts
|
Application:
Suitable for use in offshore areas and for indoor/outdoor installation (normal to harsh environment) in accordance
with DIN VDE 0100, Part 737.
Resistant to occasional cleaning procedures (direct jet) with high-pressure cleaner
without additives, water pressure: max. 65 bar, water temperature: max. 50° C, distance => 0.5
m, box and cable entries at least IP 65.
Our products are used in the following areas of application:
- Companies involved in the processing of metal, wood and paper, cement factories
- Agricultural and food industries
- Water treatment and sewage plants, power stations and cold-storage depots
- Banks and insurance buildings
- Leisure and commercial centers
- Hotel and cinema complexes
- Hospitals and clinics
- Schools and universities
- Stadiums and sports centers
- Gas stations and traffic infrastructure in ports, underground stations, tunnel and road construction
- Indoor and outdoor installations
|
|
|
|
|
