Temperature Range -40°C to +90°C
(-40°F to +194°F)
Nominal Voltage 115/200 V
Operating Voltage U0/U 0,6/1 kV
Test Voltage 4000 V
Bending Radius Approx. 6x cable Ø
Approvals
Cable
Construction
Part No. 700566-700569
Fine copper wire in acc. with DIN VDE 0295 and IEC 60228
Special plastic conductor insulation
Jacket color yellow (RAL 1021)
Part No. 700570, 770001-770003
Fine copper wire in acc. with DIN VDE 0295 and IEC 60228
Conductor insulation TPE, gray with number 1-4/1 mm²
Conductor 1 mm² stranded with bundle conductor
Double-jacket TPE/PUR
Jacket color yellow (RAL 1021)

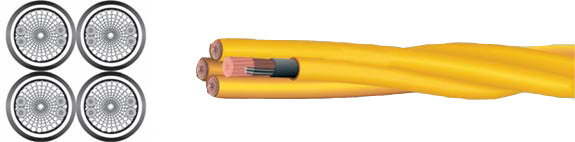

Part No. 700571, 770005, 770004, 700572
Each set of 4 parts, 700570, 770001--770003, is stranded
Application
400 Hz cables are used to supply power to aircraft (on-board power), data processing systems, radar stations, radio stations, etc. For safety reasons, 400 Hz cables are used to connect data processing systems, radar systems and communications systems to uninterruptible power supplies. Such power supplies prevent a total failure of power and compensate for frequency and voltage fluctuations. Suitable for installation indoors, outdoors, underground, and in water. Highly flexible, and can thus be plugged directly into the connector in the aircraft without an adapter, and without endangering the contacts. =
The product is conformed
with the EC Low-Voltage
Directive 73/23/EEC and
93/68/EEC.
Properties
Part No. 700570, 770001-770003
Low adhesion, abrasion resistant, halogen-free, resistant to UV, oil, hydrolysis and microbial attack
Note
The product is conformed
with the EC Low-Voltage
Directive 73/23/EEC and
93/68/EEC.
