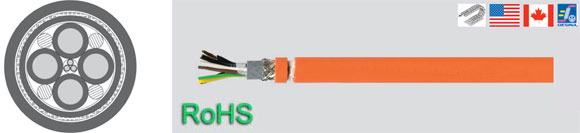

The
combination of feeder conductors
with the conductors and the thermal
protection in these cables is ideal.
Precision servomotors, as used today
in many areas of highly-automated
manufacturing processes, call for
high-quality, reliable and long-lasting
cables. These requirements are met
to a high degree by these cables.
The cables have an additional overall
shielding to ensure EMC compatibility,
i.e. for protection against electromagnetic
interference. They are manufactured
based on specifications from leading
manufacturers of servo drives and
control systems, as well as in compliance
with various VDE standards. They
are used in the construction of machinery,
plants and robots, and in automation,
drives, control and production engineering,
and in assembly equipment. EMI =
Electromagnetic
Interference
To optimize the EMI features we recommend
a large round contact of the copper
braiding on both ends. =
The product
is conformed
with the
EC Low-Voltage
Directive
73/23/EEC
and 93/68/EEC.
Properties
PUR outer jacket: low adhesion, extremely
abrasion resistant, halogen-free, resistant
to UV, oil, hydrolysis and microbial
attack
Optimum compliance with requirements
for electromagnetic compatibility (EMC)
by approx. 85% coverage from the braided
shielding
The use of polypropylene
for conductor insulation means that thanks
to the reduction in cable-related losses
these low capacitance motor cables can
have longer cable lengths between the converter
and the motor than with comparable cables
with PVC insulation
Note
For extreme applications extending
beyond standard solutions we recommend
that you request our questionnaire, which
has been especially designed for energy
supply systems.
Please observe applicable installation
regulations for use in energy supply chains.
