All Black Nylon Strain Relief Fittings, Cable Glands, Cord Grips & Fittings (Dome only) are manufactured with ULf1 / UL f1 (746C , UV Stable material. This new UV/V0 material is built for the Solar, Photovoltaic, Outdoor Industries.
* Sizes 3/8"NPT, M12, M16, PG7, PG9, and PG11 have UR (ONLY)
Need Assistance? Speak with our technial sales staff 800-456-9012
PART
NUMBERS
CABLE
RANGE
THREAD
RANGE
PRODUCT
INFO

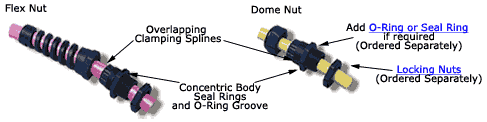

Dome Fittings
Black
Gray
Flex Fittings
Black
Gray
Inches
(mm)
CD07AA-BK
CD07AA-GY
CF07AA-BK
CF07AA-GY
.11
- .26 (3-6.5)
PG
7 / 1/4" NPT
CD07AR-BK
CD07AR-GY
CF07AR-BK
CF07AR-GY
.08
- .20 (2-5)
CD09NA-BK
CD09NA-GY
CF09NA-BK
CF09NA-GY
.16
- .31 (4-8)
3/8" NPT
CD09NR-BK
CD09NR-GY
CF09NR-BK
CF09NR-GY
.08
- .24 (2-6)
CD13NA-BK
CD13NA-GY
CF13NA-BK
CF13NA-GY
.24
- .47 (6-12)
1/2" NPT
CD13NR-BK
CD13NR-GY
CF13NR-BK
CF13NR-GY
.20
- .35 (5-9)
CD16NA-BK
CD16NA-GY
CF16NA-BK
CF16NA-GY
.39
- .55 (10-14)
1/2" NPT
CD16NR-BK
CD16NR-GY
CF16NR-BK
CF16NR-GY
.27
- .47 (7-12)
CD21NA-BK
CD21NA-GY
CF21NA-BK
CF21NA-GY
.51
- .71 (13-18)
3/4" NPT
CD21NR-BK
CD21NR-GY
CF21NR-BK
CF21NR-GY
.35
- .63 (9-16)
CD29NA-BK
CD29NA-GY
-
-
.71
- .98 (18-25)
1" NPT
CD29NR-BK
CD29NR-GY
-
-
.51
- .79 (13-20)
CD29LA-BK
CD29LA-GY
-
-
.71
- .98 (18-25)
1-1/4" NPT
CD29LR-BK
CD29LR-GY
-
-
.51
- .79 (13-20)
CD36NA-BK
CD36NA-GY
-
-
.87
- 1.26 (22-32)
1-1/2" NPT
CD36NR-BK
CD36NR-GY
-
-
.79
- 1.02 (20-26)
Longer
thread lengths available in
PG sizes.
The PG 7 thread fits a 1/4" NPT or 1/2"-20 UNF.
Applications: Control cabinets, car
washes, hot tubs, instrumentation,
carpet cleaning machines, food
processing equipment, tunnels, sensor equipment, underground
for direct burial, dive equipment, vacuums, wind turbines, solar panels, servo motors, etc.
The Strain Relief Fitting, Cable Gland, Cord Grips with the ULf1 / UL f1 (746C) material are not only more UV Stable, but continues to provide the same Water / Immersion / Submersible / Liquid Tight requirements like before. IP 68 & 69K, NEMA 4x & 6, V0 Flame Rating.
is the Exclusive Importer of HUMMEL products. We offer over 6,000 different Types and Sizes of RoHS Compliant Liquid Tight Strain Relief Fittings, Cord Grips, Cable Glands, Circular Connectors, Conduit System, Industrial Enclosures and Other Related Cable Management Products which are rated the best in the industry.
