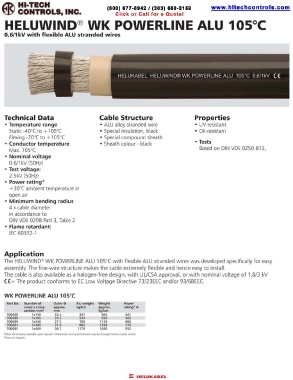

HELUWIND@ WK POWERLINE ALU 105°C

0.6/1 kV with flexible ALU stranded wires

Technical Data Cable Structure Properties
• Temperature range • ALU alloy stranded wire • UV-resistant
Static _400( to + 1 05°( • Special insulation, black • Oil-resistant
flexing _200( to + 105°( • Special compound sheath
• Conductor temperature • Sheath colour - black • Tests
Max. 105°( Based on DIN VDE 0250-813,
• Nominal voltage
0.6/1 kV (50Hz)
• Test voltage:
2 .5kV (50Hz)
• Power rating·
+ 30"( ambient temperature in
open air
• Minimum bending radius
4 x cable diameter
in accordance to
DIN VDE 0298 Part 3, Table 2
• Flame retardant:
IE( 60332-1

Application
The HELUWIND ' WK POWERLINE ALU 105°C with flexible ALU stranded wires was developed specifically for easy
assembly. The fine-wire structure makes the cable extremely flexible and hence easy to install.
The cable is also available as a halogen-free design, with UUCSA approval, or with nominal voltage of 1,8/3 kV
(E= The product conforms to EC Low Voltage Directive 73/23EEC and/or 93/68EEC.

WK POWERLINE ALU 105°C

Part No. Number of Outer" Alu weight Weight Power
COI'@$ x cross- approx. kg/km approll. rating- A
section mm' mm kg/km .. ,
706408 hl 50 22.4 .. ,
706088 hI SS 24.5 544 '"
950
660
706089 1x24t1 27.5 1150 '"
706804 "300 31.9 '" 1398 776
'82
""
706085 h400 36.7 1176 9"
Othfr dimensions _a.bIe upon requHl_ OImfnsoons ond speofiutJOnS ""'I' be d>inged ""thou; P'''' no\I(e
PrI(H 01\ rfQUtSl.
