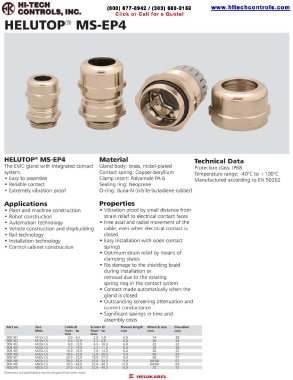

HELUTOp® MS-EP4

HELUTOP" MS-EP4 Material Technical Data
The EMC gland with integrated contact Gland body: brass. nickel-plated Protection class: IP68
system. Contad spring: Copper-beryllium Temperature range: -40"( to + 100°C
• Easy to assemble Clamp insert: Polyamide PA 6 Manufactured according to EN 50262
• Reliable contact Sealing ring: Neoprene
• Extremely vibration proof O-ring: Buna-N (nitrile-butadiene rubber)

Applications Properties
• Plant and machine construction • Vibration proof by small distance from
• Robot construction strain relief to electrical contact faces
• Automation technology • Free axial and radial movement of the
• Vehicle construction and shipbuilding cable, even when electrical contad is
• Rail technology closed
• Installation technology • Easy installation with open contad
• Control cabinet construction springs
• Optimum strain relief by means of
clamping plates
• No damage to the shielding braid
during installation or
removal due to the rotating
spring ring in the contact system
• Contact made automatically when the
gland is closed
• Outstanding screening attenuation and
current conductance
• Significant savings in time and
assembly costs
Pilrt no. Size Cable 0 Screen 0 Thread length Wrench size Eleviltion
Metr. from - to from - to mm mm mm
mm mm
905181 Ml1xl.5 3.0·6,5 Z,O' 5,0 6,0 18
905182 MI6>;I,5 5.0· 10,0 3,5· 8,0 6,0 "
20
905183 M10:.1,5 6,0·11,0 4,5·10,0 6,0 "
905184 M1Oxl,5 7,5 - 14,0 5,5·11,5 8,0 " "
38
30
905185 M25xl,5 10,0· 18,0 7,0·14,0 8,0 "
SO
905\86 M3o.l ,5 16,0 - 25,0 12,0 - 20.0 9,0 "
905187 M4Oxl,5 22,0' 31,0 18,0' 27.0 9,0 "
50
905188 M5Ol<1,5 30,0· 38,0 26,0·34.0 9,0 6M8 "
69
905189 M63xl,5 34,0·44,0 30,0·40,0 14,0 6'/68 "
905248 M63xl,5 37,0·53,0 33,0· 49.0 10,0 7S "
~,nd ~1I0'" ""Y b.-~""lIIoul prOOf IIO\>Cl'
