camozzi

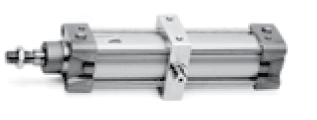

Tie-Rod Cylinders Series 60, Magnetic,
with Center Trunnion, Double-acting, with Through-rod, Front and Rear Cushions

Download & Save as PDF File PDF Download

Cylinder Series 60, Tandem Version
Construction: Cylinder with Center Trunnion
Materials: Rolled Stainless Steel Rod AISI 420B,
Anodized Aluminum Round Tube, NBR Seals,
Nuts and Tie-rods Zinc-plate Steel, Rod Seals - Polyurethane
Technical Drawing
Diameter Ø in mm
32 40 50 63 80 100 125
Cylinders Series 60, Magnetic, with Center Trunnion, Double-acting,
with Through-rod, Front and Rear Cushions
Part Number Ø (mm) Stroke (mm) XV1 XV2 XV3 TM TK TD TL UW R
60M6L032F0025
3D Preview
32 25 62 73 84 50 20 12 12 65 0,1
60M6L032F0050
3D Preview
32 50 62 73 84 50 20 12 12 65 0,1
60M6L032F0080
3D Preview
32 80 62 73 84 50 20 12 12 65 0,1
60M6L032F0100
3D Preview
32 100 62 73 84 50 20 12 12 65 0,1
60M6L032F0125
3D Preview
32 125 62 73 84 50 20 12 12 65 0,1
60M6L032F0150
3D Preview
32 150 62 73 84 50 20 12 12 65 0,1
60M6L032F0160
3D Preview
32 160 62 73 84 50 20 12 12 65 0,1
60M6L032F0200
3D Preview
32 200 62 73 84 50 20 12 12 65 0,1
60M6L032F0250
3D Preview
32 250 62 73 84 50 20 12 12 65 0,1
60M6L032F0300
3D Preview
32 300 62 73 84 50 20 12 12 65 0,1
60M6L032F0320
3D Preview
32 320 62 73 84 50 20 12 12 65 0,1
60M6L032F0400
3D Preview
32 400 62 73 84 50 20 12 12 65 0,1
60M6L032F0500
3D Preview
32 500 62 73 84 50 20 12 12 65 0,1
60M6L032F0600
3D Preview
32 600 62 73 84 50 20 12 12 65 0,1
60M6L032F0700
3D Preview
32 700 62 73 84 50 20 12 12 65 0,1
60M6L032F0800
3D Preview
32 800 62 73 84 50 20 12 12 65 0,1
60M6L032F0900
3D Preview
32 900 62 73 84 50 20 12 12 65 0,1
60M6L032F1000
3D Preview
32 1000 62 73 84 50 20 12 12 65 0,1
60M6L032F1250
3D Preview
32 1250 62 73 84 50 20 12 12 65 0,1
60M6L032F1500
3D Preview
32 1500 62 73 84 50 20 12 12 65 0,1
60M6L032F1750
3D Preview
32 1750 62 73 84 50 20 12 12 65 0,1
60M6L032F2000
3D Preview
32 2000 62 73 84 50 20 12 12 65 0,1
Cad Preview & Download Note: "3D Preview" will open a new window where Cad preview & download is available.

+ = Add the stroke
To specify Viton® Rod Seal, add "V" to the end of the part number. (E.g. 16N2A12A300V)
For NBR Rod Seal, add "R"; For all Seals Viton
®, add "W";
To specify Tandem Version, add "N" to the end of the part number.
Coding Example
Coding Example
General Data
Type of construction With tie-rods
Operation Double-acting, single-acting, tandem
Materials End-blocks = AL, seals = NBR, rod = PU, other parts: see coding
Type of mounting With tie-rods, front flange, rear flange, feet, centre trunnion, front and rear trunnion, swivel combination
Strokes min - max 10 - 2500 mm
Operating Temperature 32°F - 176°F / 0°C - 80°C (with dry air - 68°F / 20°C)
Operating Pressure 1 - 10 bar
Speed 10 - 1000 mm/sec (No load)
Fluid Filtered air, without lubrication. If lubricated air is used, it is recommended to use oil ISOVG32. Once applied the lubrication should never be interrupted.
