Minic ylinders - Series 25, Magnetic Adjustable Cushioning
Double-acting, with Through-rod
Construction: Screw with Ring and Lock Nut for Rod

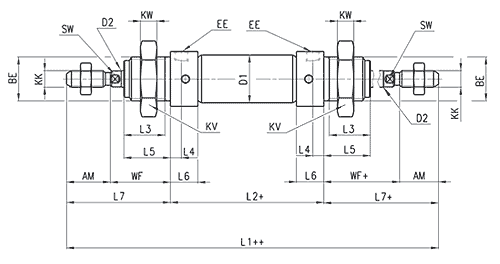

Minicylinders Series 25, Double-acting, with Through-rod
Part Number
Ø (mm)
Stroke (mm)
KW
BE
KK
ØD1
EE
ØD2
L1++
L2+
AM
L3
L4
L5
WF+
L6
L7+
KV
SW
cushion strokes front/rear
25N3A16A010
3D Preview
16
10
8
M16x1,5
M6x1
17,3
M5
6
132
56
16
15
5,5
17
22
10
38
24
5
10 / 10
25N3A16A025
3D Preview
16
25
8
M16x1,5
M6x1
17,3
M5
6
132
56
16
15
5,5
17
22
10
38
24
5
10 / 10
25N3A16A040
3D Preview
16
40
8
M16x1,5
M6x1
17,3
M5
6
132
56
16
15
5,5
17
22
10
38
24
5
10 / 10
25N3A16A050
3D Preview
16
50
8
M16x1,5
M6x1
17,3
M5
6
132
56
16
15
5,5
17
22
10
38
24
5
10 / 10
25N3A16A080
3D Preview
16
80
8
M16x1,5
M6x1
17,3
M5
6
132
56
16
15
5,5
17
22
10
38
24
5
10 / 10
25N3A16A100
3D Preview
16
100
8
M16x1,5
M6x1
17,3
M5
6
132
56
16
15
5,5
17
22
10
38
24
5
10 / 10
25N3A16A125
3D Preview
16
125
8
M16x1,5
M6x1
17,3
M5
6
132
56
16
15
5,5
17
22
10
38
24
5
10 / 10
25N3A16A160
3D Preview
16
160
8
M16x1,5
M6x1
17,3
M5
6
132
56
16
15
5,5
17
22
10
38
24
5
10 / 10
25N3A16A200
3D Preview
16
200
8
M16x1,5
M6x1
17,3
M5
6
132
56
16
15
5,5
17
22
10
38
24
5
10 / 10
25N3A16A250
3D Preview
16
250
8
M16x1,5
M6x1
17,3
M5
6
132
56
16
15
5,5
17
22
10
38
24
5
10 / 10
25N3A16A300
3D Preview
16
300
8
M16x1,5
M6x1
17,3
M5
6
132
56
16
15
5,5
17
22
10
38
24
5
10 / 10
25N3A16A320
3D Preview
16
320
8
M16x1,5
M6x1
17,3
M5
6
132
56
16
15
5,5
17
22
10
38
24
5
10 / 10
25N3A16A400
3D Preview
16
400
8
M16x1,5
M6x1
17,3
M5
6
132
56
16
15
5,5
17
22
10
38
24
5
10 / 10
25N3A16A500
3D Preview
16
500
8
M16x1,5
M6x1
17,3
M5
6
132
56
16
15
5,5
17
22
10
38
24
5
10 / 10
25N3A20A010
3D Preview
20
10
10
M22x1,5
M8x1,25
21,3
G1/8
8
156
68
20
18
8
20
24
16
44
32
7
13 / 15
25N3A20A025
3D Preview
20
25
10
M22x1,5
M8x1,25
21,3
G1/8
8
156
68
20
18
8
20
24
16
44
32
7
13 / 15
25N3A20A040
3D Preview
20
40
10
M22x1,5
M8x1,25
21,3
G1/8
8
156
68
20
18
8
20
24
16
44
32
7
13 / 15
25N3A20A050
3D Preview
20
50
10
M22x1,5
M8x1,25
21,3
G1/8
8
156
68
20
18
8
20
24
16
44
32
7
13 / 15
25N3A20A080
3D Preview
20
80
10
M22x1,5
M8x1,25
21,3
G1/8
8
156
68
20
18
8
20
24
16
44
32
7
13 / 15
25N3A20A100
3D Preview
20
100
10
M22x1,5
M8x1,25
21,3
G1/8
8
156
68
20
18
8
20
24
16
44
32
7
13 / 15
25N3A20A125
3D Preview
20
125
10
M22x1,5
M8x1,25
21,3
G1/8
8
156
68
20
18
8
20
24
16
44
32
7
13 / 15
25N3A20A160
3D Preview
20
160
10
M22x1,5
M8x1,25
21,3
G1/8
8
156
68
20
18
8
20
24
16
44
32
7
13 / 15
25N3A20A200
3D Preview
20
200
10
M22x1,5
M8x1,25
21,3
G1/8
8
156
68
20
18
8
20
24
16
44
32
7
13 / 15
25N3A20A250
3D Preview
20
250
10
M22x1,5
M8x1,25
21,3
G1/8
8
156
68
20
18
8
20
24
16
44
32
7
13 / 15
25N3A20A300
3D Preview
20
300
10
M22x1,5
M8x1,25
21,3
G1/8
8
156
68
20
18
8
20
24
16
44
32
7
13 / 15
25N3A20A320
3D Preview
20
320
10
M22x1,5
M8x1,25
21,3
G1/8
8
156
68
20
18
8
20
24
16
44
32
7
13 / 15
25N3A20A400
3D Preview
20
400
10
M22x1,5
M8x1,25
21,3
G1/8
8
156
68
20
18
8
20
24
16
44
32
7
13 / 15
25N3A20A500
3D Preview
20
500
10
M22x1,5
M8x1,25
21,3
G1/8
8
156
68
20
18
8
20
24
16
44
32
7
13 / 15
25N3A25A010
3D Preview
25
10
10
M22x1,5
M10x1,25
26,5
G1/8
10
169,5
69,5
22
20
8
22
28
16
50
32
9
16 / 14
25N3A25A025
3D Preview
25
25
10
M22x1,5
M10x1,25
26,5
G1/8
10
169,5
69,5
22
20
8
22
28
16
50
32
9
16 / 14
25N3A25A040
3D Preview
25
40
10
M22x1,5
M10x1,25
26,5
G1/8
10
169,5
69,5
22
20
8
22
28
16
50
32
9
16 / 14
25N3A25A050
3D Preview
25
50
10
M22x1,5
M10x1,25
26,5
G1/8
10
169,5
69,5
22
20
8
22
28
16
50
32
9
16 / 14
25N3A25A080
3D Preview
25
80
10
M22x1,5
M10x1,25
26,5
G1/8
10
169,5
69,5
22
20
8
22
28
16
50
32
9
16 / 14
25N3A25A100
3D Preview
25
100
10
M22x1,5
M10x1,25
26,5
G1/8
10
169,5
69,5
22
20
8
22
28
16
50
32
9
16 / 14
25N3A25A125
3D Preview
25
125
10
M22x1,5
M10x1,25
26,5
G1/8
10
169,5
69,5
22
20
8
22
28
16
50
32
9
16 / 14
25N3A25A160
3D Preview
25
160
10
M22x1,5
M10x1,25
26,5
G1/8
10
169,5
69,5
22
20
8
22
28
16
50
32
9
16 / 14
25N3A25A200
3D Preview
25
200
10
M22x1,5
M10x1,25
26,5
G1/8
10
169,5
69,5
22
20
8
22
28
16
50
32
9
16 / 14
25N3A25A250
3D Preview
25
250
10
M22x1,5
M10x1,25
26,5
G1/8
10
169,5
69,5
22
20
8
22
28
16
50
32
9
16 / 14
25N3A25A300
3D Preview
25
300
10
M22x1,5
M10x1,25
26,5
G1/8
10
169,5
69,5
22
20
8
22
28
16
50
32
9
16 / 14
25N3A25A320
3D Preview
25
320
10
M22x1,5
M10x1,25
26,5
G1/8
10
169,5
69,5
22
20
8
22
28
16
50
32
9
16 / 14
25N3A25A400
3D Preview
25
400
10
M22x1,5
M10x1,25
26,5
G1/8
10
169,5
69,5
22
20
8
22
28
16
50
32
9
16 / 14
25N3A25A500
3D Preview
25
500
10
M22x1,5
M10x1,25
26,5
G1/8
10
169,5
69,5
22
20
8
22
28
16
50
32
9
16 / 14
Note: "3D Preview" will open a new window where Cad preview & download is available.
+ = Add the stroke, ++ = Add the stroke two times
To specify Viton® Rod Seal, add "V" to the end of the part number. (E.g. 16N2A12A300V)
Coding Example
Coding Example
24
Series
N
Versions:
N = Standard
2
Operation
1 = Single-acting (Front Spring)
2 = Double-acting
3 = Double-acting (Through-rod)
7 = Single-acting (Through-rod)
A
Materials
A = Rolled Stainless Steel Rod, INOX tube
16
Bore
8 mm
10 mm
12 mm
16 mm
20 mm
25 mm
A
Construction
A = Screw with ring + Lock Nut for Rod
RL = Cylinder with Rod Lock Ø20 - Ø25
100
Stroke
-
= Standard
V = Rod Seal Viton®
General Data
Type of construction
Flanged
Operation
Single-acting or double-acting
Materials
End-blocks = anodized AL, tube and rod = stainless steel, piston = AL, seals = NBR - PU
Brackets
Screw, flange, feet, trunnion
Stroke min - max
Series 16 Ø 8 - Ø 10: 10 - 250 mm
Series 16: Ø 12: 10 - 300 mm
Series 24 & 25 Ø 16: 10 - 600 mm; Ø 20 - Ø 25: 10 - 1000 mm
Bores
Series 16: Ø 8, 10, 12 / Series 24 & 25: Ø 16, 20, 25
Operating temperature
32°F - 176°F / 0°C - 80°C (with dry air - 68°F / 20°C)
Operating pressure
1 - 10 bar (double-acting); 2 - 10 bar (single-acting)
Fluid
Filtered air, without lubrication. If lubricated air is used, it is recommended to use oil ISO VG32. Once applied the lubrication should never be interrupted.
Speed
10 - 1000 mm/sec (without load)
