sol 4 x 1.5 mm²
sol 4 x 2.5 mm²
sol 4 x 4 mm²
sol 2 x 6 mm²
conductor cross section
sol 2 x 10 mm²
current carrying capacity
of the terminal 40 A
rated insulation voltage
AC/DC 400 V
degree of protection:
IP 66
material:
sheet steel
powder-coated
color:
orange RAL 2003
cable entry
mounted 4 EDKF 32
sealing range
Ø 8-23 mm
in accordance with
DIN 4102 part 12
IEC 60,670-22
Testings:
Tested with cable manufacturers Dätwyler, Eupen, Nexans and Pirelli for the intrinsic fire resistanceE30 and E90, see test certificate no.: P-MPA-E-02-032, download available from www.hensel-electric.de
Accessories for FK 9105: EDK 32 - Grommet, IP 66
for indoor - normal environment and (or) protected outdoor installation
ambient temperature - 25° to + 35° C
degree of protection:
IP 66
material:
thermoplastic
color:
orange RAL 2003
sealing range
Ø 8-23 mm
glow wire test
IEC 60 695-2-11 750°C

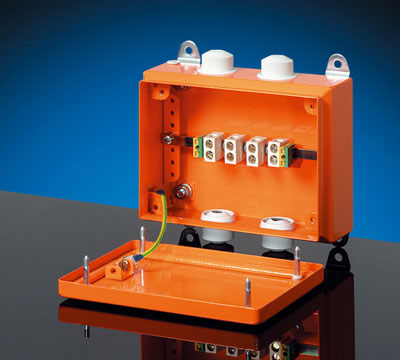

FK9105 Features & Applications
Application area
Suitable for indoor installation and outdoor installation, protected against weather influences according to DIN VDE 0100 Part 737
ambient temperature
Average value over 24 hours + 35° C
Maximum value + 40° C
Minimum value - 25° C
Relative humidity
50% at 40° C
short-time
100% at 25° C
Toxic behavior
sheet steel, powder-coated
halogen-free
"halogen-free" in accordance with the examination of the cables and insulated wires - corrosiveness of fumes - as per IEC 754-2
Our products are used in the following areas of application:
Companies involved in the processing of metal, wood and paper, cement factories
Agricultural and food industries
Water treatment and sewage plants, power stations and cold-storage depots
Banks and insurance buildings
Leisure and commercial centers
Hotel and cinema complexes
Hospitals and clinics
Schools and universities
Stadiums and sports centers
Gas stations and traffic infrastructure in ports, underground stations, tunnel and road construction
Indoor and outdoor installations
