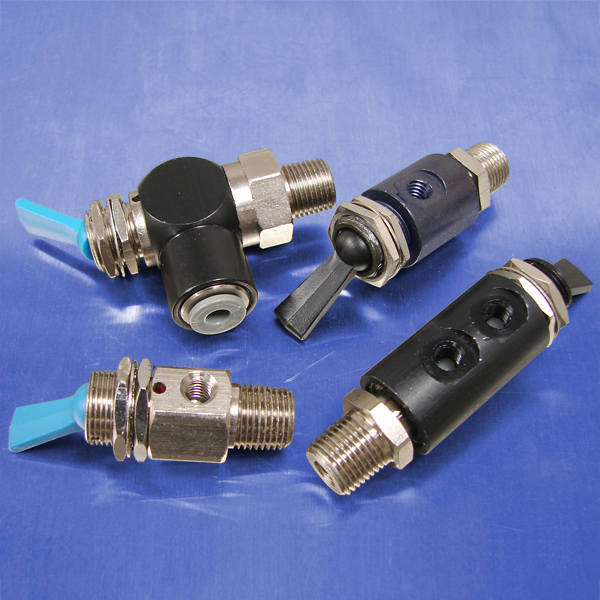

Momentary Toggle (1/8 NPT Input,

3-Way Normally Open Valves)

Two styles of 3-way normally open valves with 1/8 NPT input ports are offered to accommodate application requirements.

Pneumadyne's "0" Series valve, part number F0-31-1, features a swivel input port for alignment purposes.

Our "11" Series valves, part numbers start with F11, feature a swivel output port for plumbing convenience. Push-in connections are also available to speed tubing installation.

Features:

• Clear anodized for corrosion and wear resistance
• Miniature size is ideal for limited space applications
• Internal poppet design contributes to long product life
• Durable nylon momentary toggles
• Miniature size
• Lockwasher and nuts provided

Performance Data:

• Operating Pressure: 0 to 125 psi
• Flow Rate: Ranges from 17.3 to 19 scfm at 125 psi depending upon the valve selected.
