Bimba Pneumadyne Inc. - Pneumatic Valves

Detented Toggle (1/8 NPT Input,

3-Way Normally Open Valves)

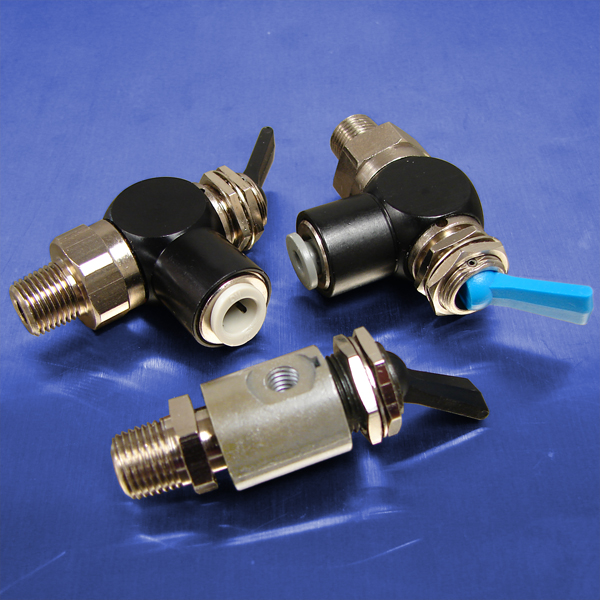

Two styles of 3-way normally open control valves are offered for plumbing convenience.

Pneumadyne's "0" Series valve, part numbers H0-31-1, features a swivel input port for valve alignment purposes.

The "11" Series valves (part numbers begin with H11) feature a swivel output port as well as push-in connections to speed tubing installation.

Features:

• Compact size is ideal for limited space applications
• Clear anodized for corrosion resistance
• Poppet design contributors to long product life
• Swivel ports accommodate alignment requirements
• Nuts and lockwasher provided
• Durable nylon toggles

Performance Data:

• Operating Pressure: 0 to 125 psi
• Flow Rate: Ranges from 17.3 to 19 scfm at 125 psi depending upon the valve selected.
