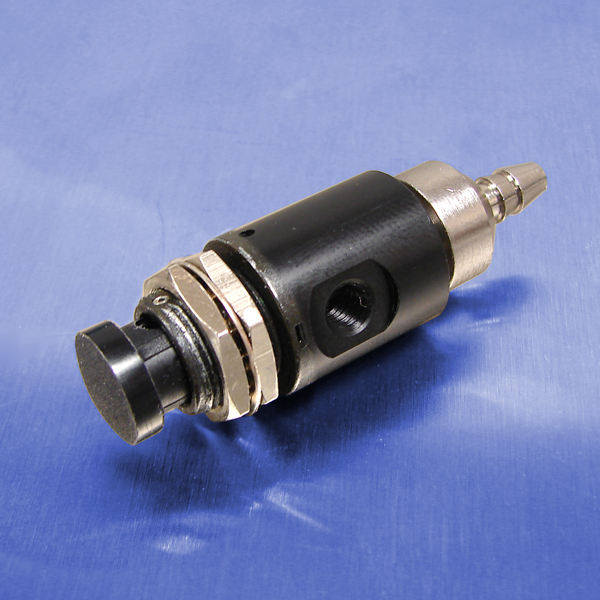

Push Button (.170 Barb Input Port,

3-Way Normally Closed Valves)

.170 tube id barbs are ideal for use with polyurethane tubing. To fit application requirements, Pneumadyne manufactures two styles of valves with a .170 barb input port.

The "0" Series valve, part number A0-30-5, features a swivel input port for alignment purposes. The "3" Series valve, part number A3-30-5, is fully ported for the removal of exhaust flow and also offers the swivel input port.

Features:

• Black anodized and electroless nickel plated for corrosion resistance
• Miniature size is ideal for limited space applications
• Internal poppet design contributes to long product life
• Durable nylon push button actuators
• Locknuts (2) and washer provided

Performance Data:

• Operating Pressure: 0 to 125 psi
• Flow Rate: Ranges from 15.4 to 17.3 scfm at 125 psi
