Push Button (1/8 NPT Input,

3-Way Normally Closed Valves)

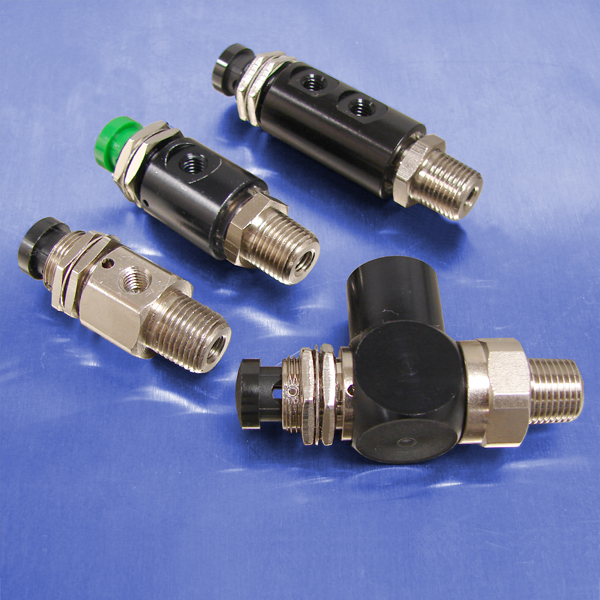

To ensure that flow and plumbing requirements are met, Pneumadyne manufactures four styles of 3-way valves with 1/8 NPT input ports.

The "0" Series valve, part number A0-30-1, features a swivel input port for valve aligment purposes. The non-threaded exhaust port allows pressure to be relieved to atmosphere.

Our "3" Series valve, part number A3-30-1, also features a swivel input port as well as a 10-32 (F) exhaust port to capture and remove exhaust flow from your application.

Pneumadyne's "11" Series (part numbers begin with A11) features a swivel output port to accommodate alignment requirements. Push-to-connect ports also ease tubing connection and disconnection.

The "300" Series valves, part numbers C030605 & C030625, are ideal for direct mounting in a manifold or other machine member.

Features:

• Black anodized and electroless nickel plated for corrosion resistance
• Miniature size for limited space applications
• Swivel ports accommodate aligment requirements
• Numerous porting configurations
• Nuts and lockwasher provided for panel mounting

Performance Data:

• Operating Pressure: 26" Hg to 125 psi
• Flow Rate: Ranges from 12.1 to 22 scfm at 125 psi depending upon the valve selected. Download Performance Data for specific information.
