Bimba Pneumadyne Inc. - Pneumatic Valves

Detented Toggle (1/8 NPT (F) Input,

3-Way Normally Closed Valves)

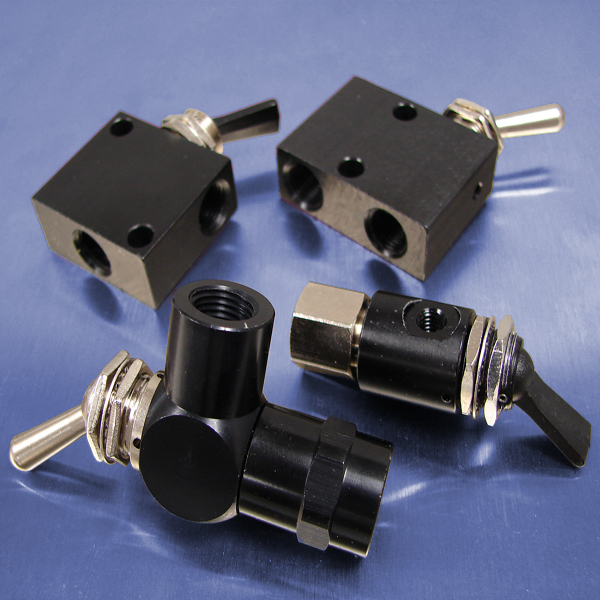

Pneumadyne manufactures seven configurations of 3-way valves with 1/8 NPT (F) input port to accommodate application and plumbing requirements.

Our "0" & "3" Series valves, part numbers H0-30-4 & H3-30-4, feature swivel input ports for valve alignment purposes and 10-32 (F) output ports. The "3" Series also has a 10-32 (F) exhaust port to capture and direct exhaust flow in cleanroom, liquid or lubricated air applications.

Pneumadyne's "11" Series valves (part numbers start with H11) feature a swivel output port and push-in connections to ease tubing installation.

Four styles of "400" Series valves (part numbers start with C04) are offered for plumbing convenience and feature 1/8 NPT (F) input and output ports. Fully ported valves are also available for the capture and removal of exhaust flow.

Features:

• Black anodized for corrosion and wear resistance
• Miniature size for space constrained applications
• Mounting and plumbing versatility
• Swivel ports for valve alignment
• Nuts and lockwasher provided

Performance Data:

• Operating Pressure: 26" Hg to 125 psi
• Flow Rate: Ranges from 15.4 to 33 scfm depending upon valve selected
