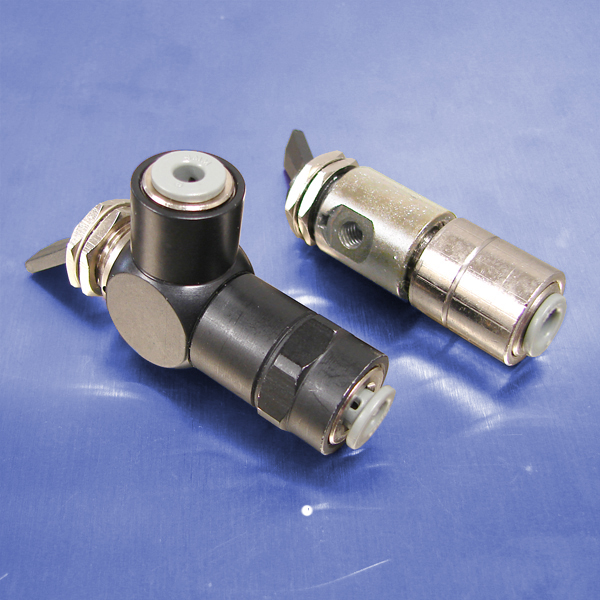

Detented Toggle (1/4 Push-in Input,

2-Way Normally Open Valves)

Pneumadyne's 2-way normally open valves are available in two configurations to fit your system requirements.

The "0" Series, part number H0-21-6, features a 10-32 (F) output port and a swivel input port.

Our "11" Series valves, part numbers begin with H11, feature a swivel output port for alignment purposes. Push-in connections are also available to ease tubing installation.

Features:

• Durable nylon detented toggles
• Black anodized valve bodies provided corrosion resistance
• Push-to-connecto ports speed tubing installation
• Compact size
• Nuts & lockwasher included

Performance Data:

• Operating Pressure: 0 to 125 psi
• Flow Rate: Ranges from 17.3 to 19 scfm at 125 psi depending upon the valve selected. Download Performance Data for specific information.
