Momentary Toggle (1/4 Push-in Input

Port, 2-Way Normally Open Valves)

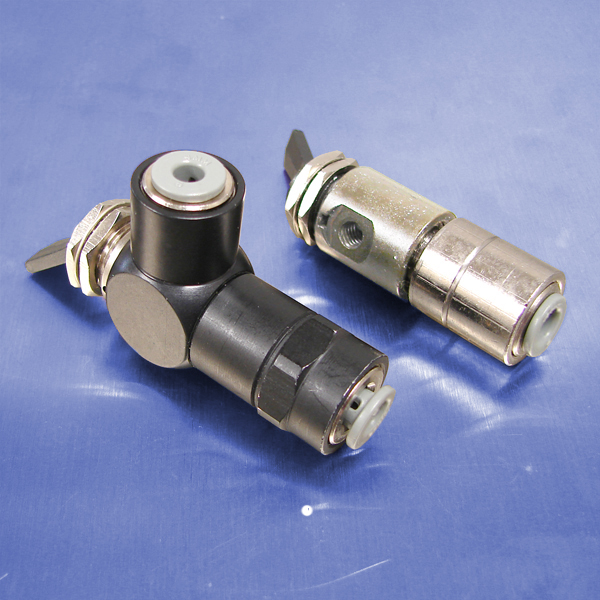

Two styles of normally open valves with 1/4 push-to-connect input ports are available to accommodate your application requirements.

Our "0" Series valve, part number F0-21-6, features the swivel input port and 10-32 (F) output port.

Pneumadyne's "11" Series, part numbers start with F11, feature push-to-connect output ports to speed tubing installation. The output port also swivels for alignment purposes

Features:

• Anodized and electroless nickel plated for corrosion resistance
• Durable nylon momentary toggles
• Swivel ports accommodate aligment requirements
• Miniature size is ideal for limited space applications
• Poppet design contributes to long product life
• Lockwasher and nuts provided for panel mounting

Performance Data:

• Operating Pressure: 0 to 125 psi
• Flow Rate: Ranges from 17.3 to 19 scfm at 125 psi depending upon the valve selected. Download Performance Data for specific information.
