Push Button (5/32 Push-in Input Port,

2-Way Valves)

Pneumadyne manufactures 2-way valves with push-in connections on both the input and output ports for plumbing convenience. Several configurations are available to fit application requirements.

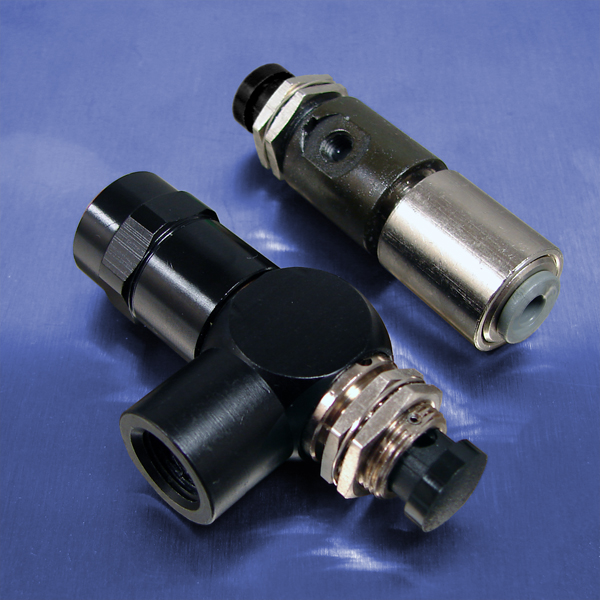

Our highly reliable “0” Series valve, part number A0-20-7, features a swivel input port with 5/32 push-in connection to ease tubing installation and alignment.

The “11” Series valves (part numbers begin with A11) feature a swivel output port and are available with threaded and push-to-connect input ports.

Both styles of valves have an internal poppet design which contributes to a long product life.

Features:

• Push-in connections speed tubing installation
• Swivel ports are ideal for valve alignment
• Black anodized valve bodies for corrosion and wear resistance
• Internal poppet design for long product life
• High flow
• Nuts and lockwasher provided

Performance Data:

• Operating Pressure: 26" Hg to 125 psi
• Flow Rate: Ranges from 17.3 to 33 scfm at 125 psi depending upon the valve selected. Download Performance Data for specific information.
