	Pneumatic Valves

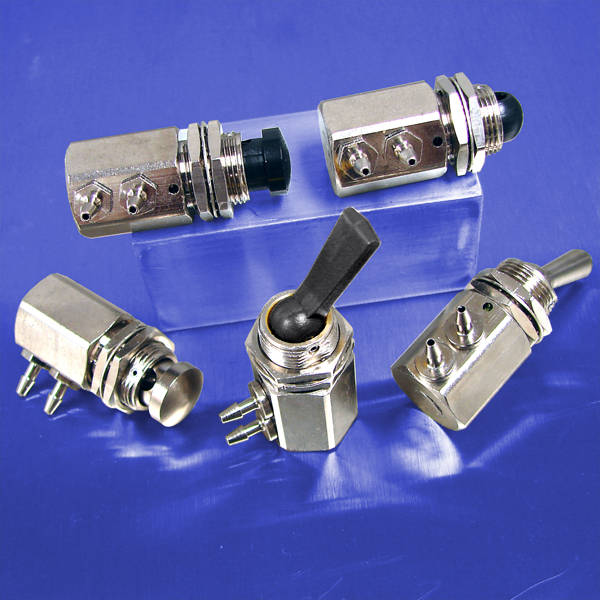

Click to enlarge	1/16 Tube Id Barb Input Port, 2-Way Normally Closed Valves Ball operated "200" Series valves are recommended for use in applications where space is limited. These compact valves are precision machined and feature a single stem design. Ideal for use as a pilot service device. Features: • Barbed ports accommodate 1/16 id Polyurethane tubing • Electroless nickel plated valve body for corrosion resistance • Sturdy Nylon or metal toggles are offered to fit applcation requirements • Ideal for use as a pilot service device • Nylon or stainless steel ball operator • Can be used with vacuum to 26" Hg • A lockwasher and 2 nuts are included

Pneumatic 1/16 Tube Id Barb Input Port, 2-Way Normally Closed Valves
Part Number	Operator	Input Port	Output Port
Ball (1/16 Barb Input, 2-Way NC Valves)
C021707	Nylon Ball	1-16 Tube Id Barb	1-16 Tube Id Barb
C021727	Stainless Steel Ball	1-16 Tube Id Barb	1-16 Tube Id Barb
Detented Toggle (1/16 Barb Input, 2-Way NC Valves)
C021701	Nylon Detented Toggle	1-16 Tube Id Barb	1-16 Tube Id Barb
C021721	Metal Detented Toggle	1-16 Tube Id Barb	1-16 Tube Id Barb
Momentary Toggle (1/16 Barb Input, 2-Way NC Valves)
C021703	Nylon Momentary Toggle	1-16 Tube Id Barb	1-16 Tube Id Barb
C021723	Metal Momentary Toggle	1-16 Tube Id Barb	1-16 Tube Id Barb
Push Button (1/16 Barb Input, 2-Way NC Valves)
C021705	Nylon Push Button	1-16 Tube Id Barb	1-16 Tube Id Barb
C021725	Metal Push Button	1-16 Tube Id Barb	1-16 Tube Id Barb

Contact Sealcon to be your Pneumatic Components & Systems Supplier

We have access to a large amount of Pneumadyne Bimba inventory. They specialize in a wide range of standard miniature pneumatic valves. We can also assist you with design and engineering of custom pneumatic components or full pneumatic control systems.
