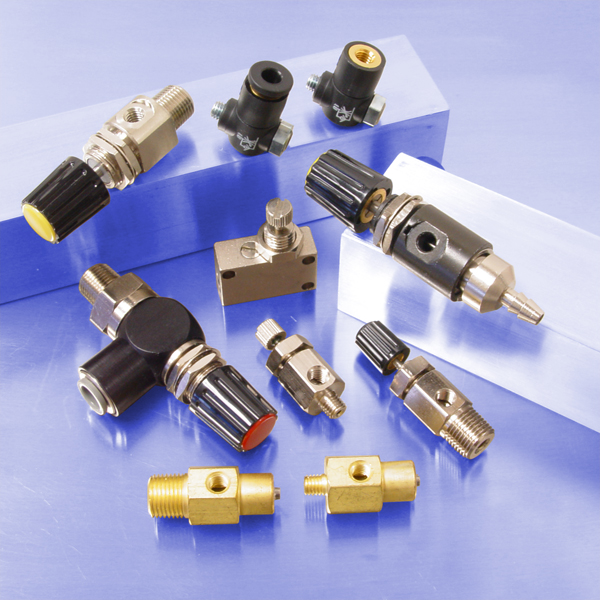

Needle Valves
Needle Valves are used to reduce the rate of flow in a leg of a pneumatic circuit, consequently slowing actuator speed. Unlike a Needle, a Needle Valve controls flow in both directions (bi-directional). A finely threaded stem allows the gradual adjustment of the amount of controlled flow passing through the valve. Flow enters the input port, travels through an orifice sized by the tapered stem and out the output port.
When selecting a Needle Valve for your pneumatic circuit, it is imperative that you know your flow rate requirements. The speed of the related actuator is dependent upon how quickly the actuator can be filled with air at the input and exhausted at the output.
|
