Pneumatic Valves

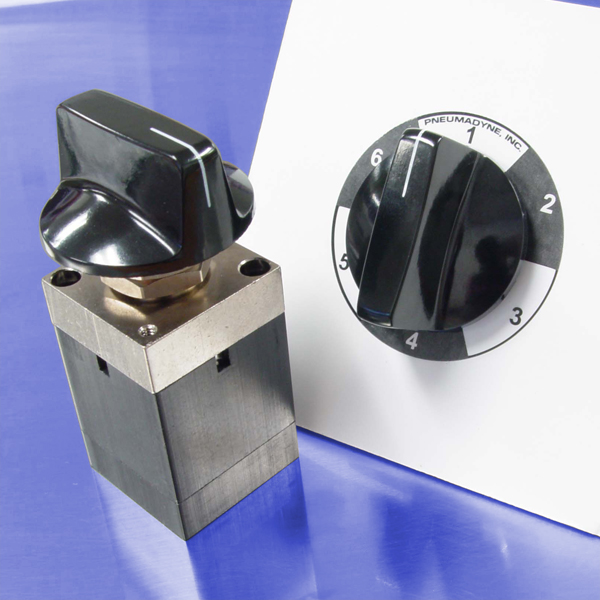

6-Position Selector Valves

A Selector Valve is the ideal choice when your application requires you to control a variety of activities from a single source. Our 6-Position pneumatic Selector Valves allow the actuation of up to six individual circuits from a common input port. Two styles, Standard Selector and Shut-off Selector, are available to accommodate your application requirements.

The Standard Selector Valve directs flow through each output port as the knob is turned. The Shut-off Selector Valve requires the knob to be pushed-in and turned, blocking flow to the output ports until a position is selected. These 3-way valves exhaust to atmosphere upon selection of a new output port.

A spring-loaded "wear compensating seat" retains a tight fit ensuring that the valve will not leak with wear.

FEATURES:

• Common input port
• 10-32 (F) ports
• Black anodized for corrosion resistance
• Two styles of actuation
• Panel mount
• Detented knob
