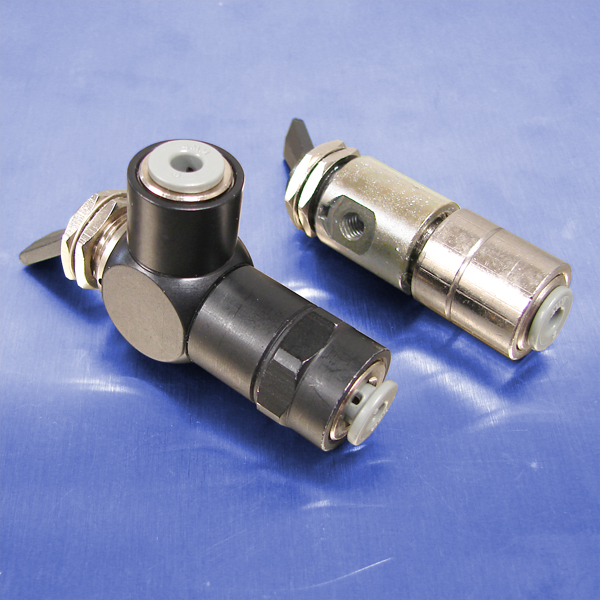

Detented Toggle (5/32 Push-in,
3-Way Normally Open Valves)
Pneumadyne manufactures valves with push-in ports to speed valve and tubing installation in your application. Two styles are available to fit plumbing requirements.
Our highly reliable "0" Series valve, part number H0-31-7, features a swivel input port to accommodate the natural twist of polyurethane tubing.
The "11" Series valves (part numbers start with H11) feature a swivel output port for plumbing convenience.
Features:
• Clear anodized for corrosion and wear resistance
• Miniature size is ideal for limited space applications
• Poppet design contributors to long product life
• Swivel ports accommodate alignment requirements
• Nuts and lockwasher provided
Performance Data:
• Operating Pressure: 0 to 125 psi
• Flow Rate: Ranges from 17.3 to 19 scfm at 125 psi depending upon valve selected
|
