Detented Toggle, 10-32 (F) Input Port,

3-Way Normally Open Valves

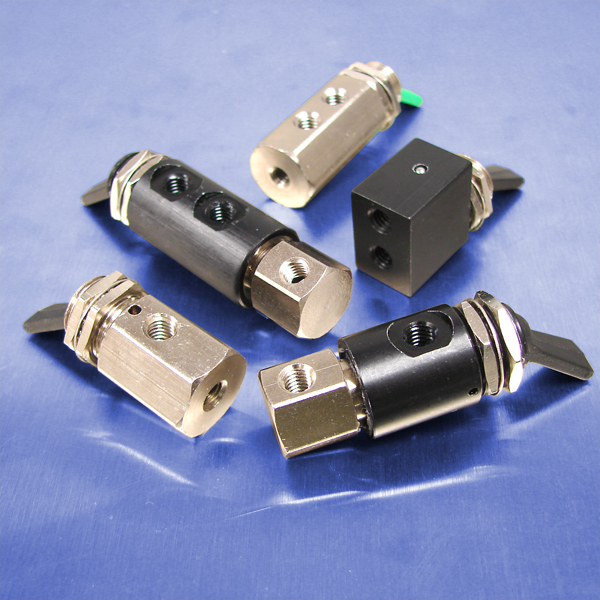

Two styles of 3-way normally open control valves are offered to accommodate application requirements.

Pneumadyne's "0" Series valves, part numbers H0-31-2 & H0-31-3, feature a swivel input port with elbow and tee configurations for alignment purposes.

The "300" Series valves, part numbers C030301 & C030321, feature a single stem design and are ideal for basic on/off functions.

Features:

• Clear anodized and electroless nickel plated for corrosion resistance
• Durable nylon and metal toggles
• Miniature size is ideal for applications where space is limited
• Swivel ports accommodate critical valve alignment
• Nuts and lockwasher provided for panel mounting

Performance Data:

• Operating Pressure: 26" Hg to 125 psi
• Flow Rate: Ranges from 15.5 to 17.3 scfm at 125 psi depending upon the valve selected.
