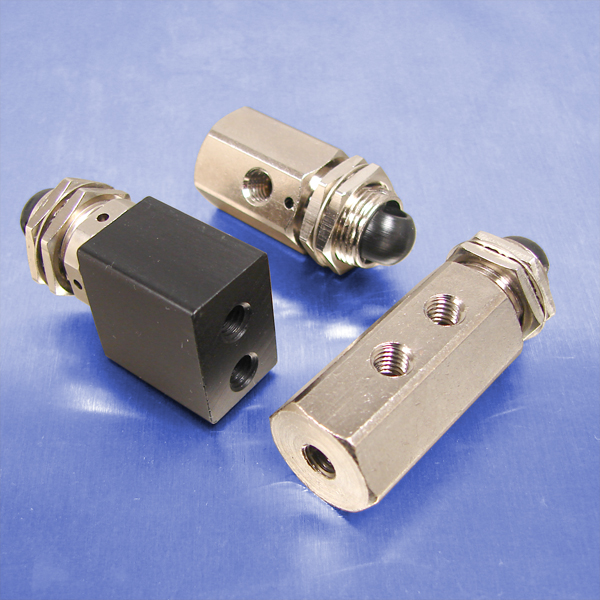

Ball, 10-32 (F) Input Port,

3-Way Normally Open Valves

Pneumadyne's "300" Series 3-way normally open valves are ideal for basic on/off functions or for use as a pilot actuating device. The nylon or stainless steel ball actuator is retained by a specially designed roll pin which extends service life and produces a fit that will not fall out.

Features:

• Electroless nickel plated for corrosion resistance
• Single stem design
• Accommodates vacuum applications to 26" Hg
• Compact size is ideal for limited space applications.
• Nuts and lockwasher provided

Performance Data:

• Operating Pressure: 26" Hg to 125 psi
• Flow Rate: Ranges from 15.5 scfm at 125 psi depending upon the valve selected.
