Detented Toggle (1/4 Push-in Input,

3-Way Normally Open Valves)

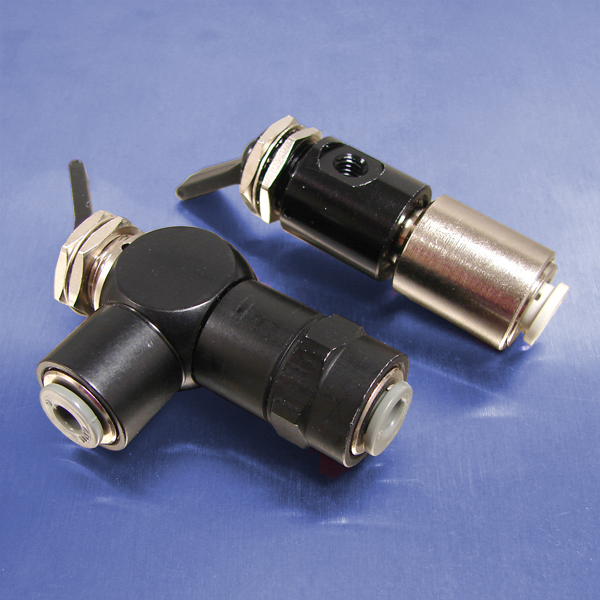

3-way normally open valves are available with 1/4 push-in input ports to ease valve installation and tubing connection. Pneumadyne manufactures two styles to fit your application requirements.

Our highly reliable "0" Series valve, part number H0-31-6, features a swivel input port for critical valve alignment.

The "11" Series (part numbers start with H11) have a swivel output port for plumbing convenience. Push-in connections are also offered in the output port to speed tubing installation.

Features:

• Clear anodized for corrosion and wear resistance
• Miniature size is ideal for limited space applications
• Internal poppet design contributes to long product life
• Swivel ports for valve alignment
• Locknuts (2) and washer provided
• Durable nylon toggles

Performance Data:

• Operating Pressure: 0 to 125 psi
• Flow Rate: Ranges from 17.3 to 19 scfm at 125 psi depending upon the valve selected.
