	Bimba Pneumadyne Inc. - Pneumatic Valves

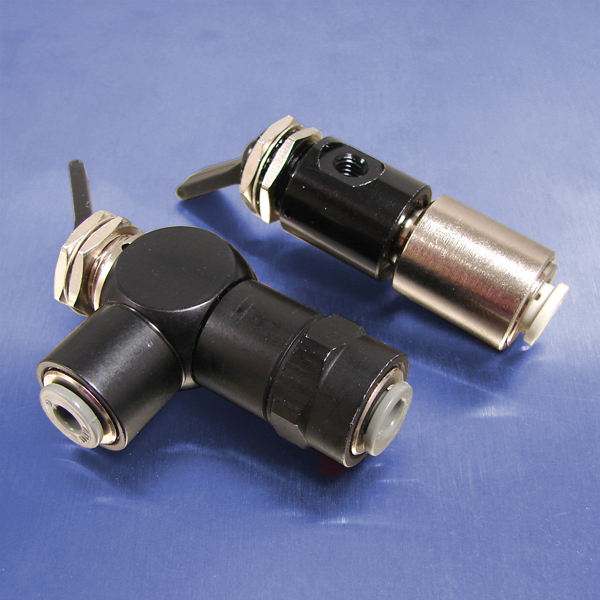

Click to enlarge	Momentary Toggle (1/4 Push-in Input Port, 3-Way Normally Open Valves) Push-in ports speed valve installation and tubing connection. For plumbing convenience, Pneumadyne manufactures two styles of 3-way normally open control valves with 1/4 Push-in input ports. Our highly reliable "0" Series valve, part number F0-31-6, features a swivel input port which accommodates the natural twist of polyurethane tubing. The "11" Series valves, part numbers begin with F11, have a swivel output port for added convenience. Push-in ports are also available in the output port to ease valve installation. Features: • Clear anodized for corrosion and wear resistance • Swivel ports accommodate alignment requirements • Internal poppet design contributes to long product life • High flow • Locknuts (2) and washer provided Performance Data: • Operating Pressure: 0 to 125 psi • Flow Rate: Ranges from 17.3 to 19 scfm at 125 psi depending upon the valve selected.

Pneumadyne - Momentary Toggle (1/4 Push-in Input, 3-Way Normally Open Valves
Part Number	EXHAUST PORT	Input Port	Output Port
Momentary Toggle (1/4 Push-in Input Port, 3-Way NO Valves)
F0-31-6	Non-Threaded	1/4 Push-in	10-32 (F)
F11-31-64	Non-Threaded	1/4 Push-in	1/8 NPT (F)
F11-31-66	Non-Threaded	1/4 Push-in	1/4" Push-in
F11-31-67	Non-Threaded	1/4 Push-in	5/32" Push-in

Contact Sealcon to be your Pneumatic Components & Systems Supplier

We have access to a large amount of Pneumadyne Bimba inventory. They specialize in a wide range of standard miniature pneumatic valves. We can also assist you with design and engineering of custom pneumatic components or full pneumatic control systems.
