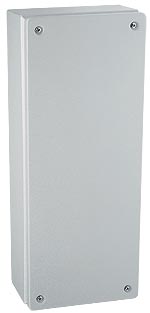

These Enclosures are made of gray RAL 7035 powder coated steel, ideally used in terminal boxes.
Standard equipment includes a perforated mounting angle to facilitate installation of the mounting plate or DIN rails. This makes it possible to drill access holes for cables anywhere along the sidewalls.
A 4-3/4" (120 mm) deep Steel Enclosure with mounting flange or Polycarbonate translucent top will be available upon request.
Characteristics of Powder-coated Steel
High impact resistance
High degree of protection
Easy to customize, special dimensions possible
Not as corrosion resistant as Stainless Steel
Powder-coated Steel
Protection EN 60529
IP 66
Impact EN 50102
at +95/-13°F (+35/-25°C)
IK 09
Temperature Range
14° F - 176° F (-10° C – 80° C)
Standard Color
Gray RAL 7035
Gasket
PUR (Polyurethane)
Cover Screws
Stainless Steel AISI 304
