Nickel Plated Brass DOT Push-In Fittings - NPTF / Inch Sizes

Download & Save as PDF File PDF Download

D6540 - Union Tee

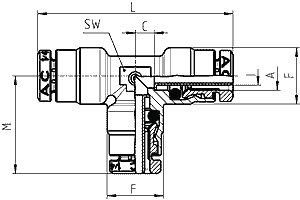

D6540 - Union Tee Technical Drawing
Part Number OD
A
C F I L M SW
D6540 53-00 5/32 0.138 0.354 - 1.496 0.748 0.315
D6540 04-00 1/4 0.157 0.500 0.165 1.692 0.846 0.354
D6540 06-00 3/8 0.256 0.649 0.244 2.204 1.102 0.512
D6540 08-00 1/2 0.315 0.767 0.362 2.362 1.181 0.590
(Dimensions in Inches)
Technical Specifications
Material Electroless Nickel-plated brass OT58 UNI 5705
Collet Brass OT58 UNI 5705, nickel plated
O-Ring Buna-N [Viton® available], Epdm available
Thread Connections 1/8", 1/4", 3/8", 1/2" NPTF
Operating Pressure 0 - 800 psi
Tube Diameters 5/32", 1/4", 3/8", 1/2"
Fluid Compressed air (For other types of fluids please contact us)
Operating Temperature -20°F to 200°F (-29°C - 93°C)
