Collet design offers greater grip strength under higher pressure or
tubing tension
Collet release mechanism based on relaxed slope of grip teeth, as
opposed to disengaging “bite-rings” from partially cut tubes
Removable Collet and tube o-rings
Won’t break like plastic release rings and bodies; more durable
design
Higher holding force, with easier release
Won’t scratch tubes like “bite-ring” designs
Less chance of micro-leakage and bubble-leaks over time due to damaged
tubing
Higher pressures actually offer greater grip-strength with high-pressure
Nylon tubing
Body
Body
All-Metal, Nickel Plated body and Threads
Compact Brass bodies from Brass forgings
Standard Buna-N or Specialized O-ring choices for High-Temp,
Low-Temp, Special Fluids, Food-Grade compatibility
Broad Range of shapes and configurations
Crimp design on Swivels maintains Full ID Flow path
Swivels offer Mechanical crimping lock based on cold-forged brass
and not spin-swaged or “thinned” brass
Full ID Flow for Swivels and Straights, with high relief on larger
sizes
Internal Hex on Straight fittings
Resistant to UV exposure
Better resistance to stress-cracking, abrasion, solvents, detergents,
hydrocarbons and other fluid media
FDA/NSF approved materials, (Including customized Nickel-Plating
and o-ring options)
Simplified manifold circuits with broader variety of fitting combinations
and shapes to select
Lighter weight for End-of-Arm tooling & Robotic handling
Compact design reduces overall dimensions for valve assemblies,
packaging applications and control cabinets
12% Reduction in overall Body size, compared to previous Brass line
Full ID Flow and high relief undercuts offers greatest flow without
restriction to circuit design flow calculations

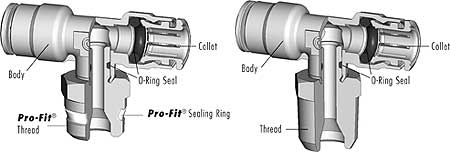

Pro-Fit® Thread Design
Pro-Fit® Thread Design
Low Profile Fit
Fast Installation
Perfect Reusable Seal
Eliminates exposed threads and fits into tight spaces, making them
ideal for food processing and hygienic applications.
Eliminates the need for Teflon® tape or pipe dope. Shorter thread
length requires fewer turns to tighten
The captured PTFE sealing ring provides a dependable and reusable
shoulder seal without the risk of thread sealant contamination.
This page is still under construction. We are in the process of adding more information.
If you have any questions related to this new product line, please contact our customer service.
