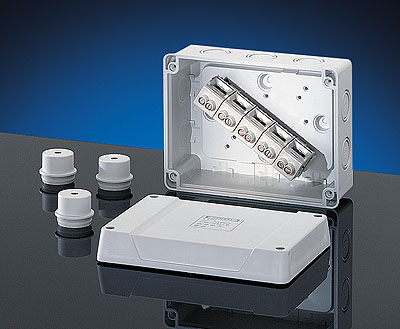

K 9105 - Polystyrene Indoor Enclosures w/ Metric Knockouts & Terminals |
|

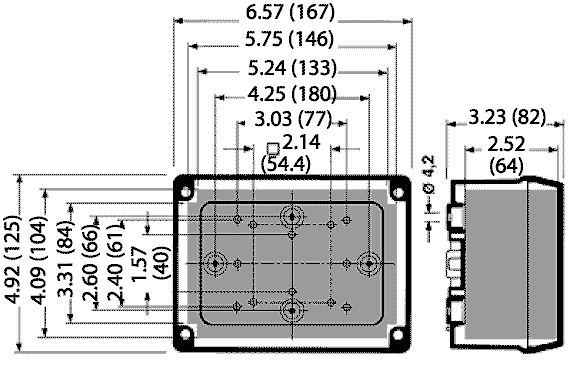

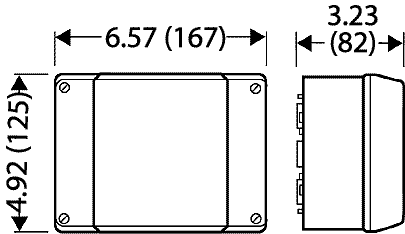

W 6.57" (167 mm) x H 4.92" (125 mm) x D 3.23" (82 mm)
|
| rated connecting capacity |
3~ 4-10 mm² |
|
| conductor material |
Cu |
|
| polarity |
5-pole |
|
| conductor cross section |
sol 6 x 2,5 mm²
sol 4 x 4 mm²
sol 4 x 6 mm²
sol 4 x 10 mm² |
|
| conductor cross section |
s 2 x 16 mm² |
|
| current carrying capacity |
63 A |
|
| rated insulation voltage |
AC/DC 690 V |
|
| degree of protection |
IP 55 (with ESM Grommet) |
|
| degree of protection |
IP 68 (with Liquid Tight Cable Gland) |
|
| material |
thermoplastic |
|
| color |
gray RAL 7035 |
|
| cable entry |
included 3 ESM 32 |
|
| sealing range |
Ø 9-23 mm |
|
|
|
K9105 Features & Applications |
High quality Thermoplastic (Polystyrene):
- Solid, modern and user-friendly design
- Color: Gray RAL 7035
- Halogen-free and Silicone-free
- Fire-resistant & Self-extinguishing
- RoHS Compliant
- Stainless Steel fastening screws
- Accessories included in box
- Vibration-resistant terminals
- Maintenance-free
- Cable Entry: Metric Knockouts
|
Application:
This Enclosure box is suitable for indoor installation and protected outdoor installation, protected against weather influences
according to DIN VDE 0100 Part 737.
Resistant to occasional cleaning procedures (direct jet) max. with high-pressure cleaner
without additives water pressure: max. 65 bar, water temperature: max. 50° C, distance => 0.5
m box and cable entries at least IP 65.
Our products are used in the following areas of application:
- Companies involved in the processing of metal, wood and paper, cement factories
- Agricultural and food industries
- Water treatment and sewage plants, power stations and cold-storage depots
- Banks and insurance buildings
- Leisure and commercial centers
- Hotel and cinema complexes
- Hospitals and clinics
- Schools and universities
- Stadiums and sports centers
- Gas stations and traffic infrastructure in ports, underground stations, tunnel and road construction
- Indoor and outdoor installations
|
|
|
|
|
