Home Page|Explosion Proof Enclosures|Explosive Proof LX Series, Surface-coated |

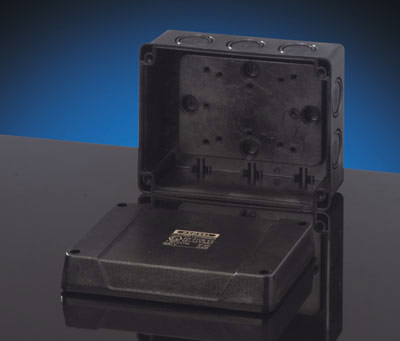

LX 1000 - Explosion Proof Empty Enclosure for Hazardous Areas,
Polycarbonate (Surface-coated to avoid static discharge), without Terminal |
|
- serves as component for the creation of products/protective systems for use in hazardous areas
- in accordance with standard 94/9/EG (ATEX)
- can be used in zone 2 and zone 22
|
| degree of protection |
IP 65 |
|
| material |
impact resistant PC G1 Polycarbonate |
|
| mounting width |
141 mm |
|
| mounting height |
99 mm |
|
| max. installation depth |
64 mm |
|
| color |
black RAL 9011 |
|
| bleeder resistance (surface resistance) |
< 1 GOhm
13 W
at a temperature difference of 40 K |
|
| cable entry |
cable/conduit entry via metric knockouts |
|
| Explosion protection code |
3 GD
EEx nA II U
(Construction component) |
|
|
|
|
LX1000 Features & Applications
|
High quality PC-G1 Polycarbonate:
- Color: Black RAL 9011
- Impact resistant
- Halogen-free, Silicone-free
- Fire resistant & self-extinguishing
- Protection IP 65
- Explosion protection code: EEx nA II 3GD T 80° C (T6)
|
Application:
Suitable for indoor installation and outdoor installation, protected against weather influences
according to DIN VDE 0100 Part 737.
These Polycarbonate Enclosures are surface-coated with a special type of paint to prevent electrostatic discharge. ...Learn More
Use with Explosion Proof Cable Glands.
Our products are used in the following areas of application:
- Companies involved in the processing of metal, wood and paper, cement factories
- Agricultural and food industries
- Water treatment and sewage plants, power stations and cold-storage depots
- Banks and insurance buildings
- Leisure and commercial centers
- Hotel and cinema complexes
- Hospitals and clinics
- Schools and universities
- Stadiums and sports centers
- Gas stations and traffic infrastructure in ports, underground stations, tunnel and road construction
- Indoor and outdoor installations
|
|
|
|
|
