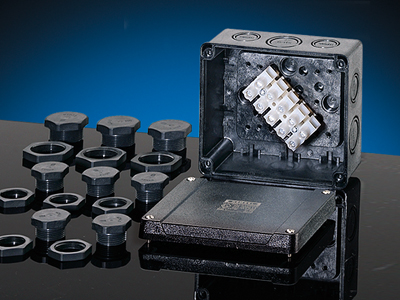

KX 2065 - Enclosures for Hazardous Areas / Explosion Proof - with Terminal |
|
- in accordance with standard 94/9/EG (ATEX)
- with terminals
- mounted using exterior wall fixings
- for hazardous areas, can be used in Zone 2 and Zone 22
|
| rated connecting capacity |
3~ 2,5-6 mm² |
|
| conductor material |
Cu |
|
| polarity |
5-pole |
|
| conductor cross section |
sol 4 x 2,5 mm²
sol 4 x 4 mm²
sol 3 x 6 mm²
sol 2 x 10 mm² |
|
| rated current |
43 A |
|
| rated insulation voltage |
AC 690 V |
|
| degree of protection |
IP 65 |
|
| material |
impact-resistant thermoplastic |
|
| color |
black RAL 9011 |
|
| Explosion protection code |
EEx nA II 3GD T 80° C (T6) |
|
|
|
|
|
KX2065 Features & Applications
|
High quality Thermoplastics:
- Color: Black RAL 9011
- Impact resistant
- Halogen-free, Silicone-free
- Fire resistant & self-extinguishing
- Protection IP 65
|
Application:
Suitable for indoor installation and outdoor installation, protected against weather influences
according to DIN VDE 0100 Part 737.
Explosion protection code: EEx nA II 3GD T 80° C (T6). Use with Explosion Proof Cable Glands.
