CAMOZZI Valves - Manual, Mechanical & Air-Pilot

Composite Flow Regulators with Banjo - BSP/Metric

Download & Save as PDF File PDF Download

Composite Flow Regulators with Banjo - BSP/Metric

Valve Series PMCU (Meter-Out)
Valve Series PMCU (Meter-Out)

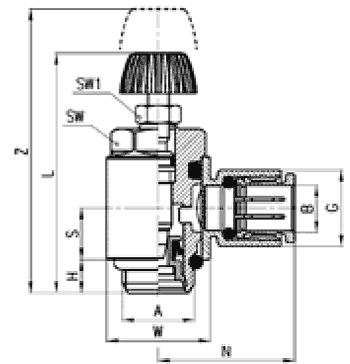

Technical Drawing
Part Number A B G H L N S W SW SW1 Z
PMCU 704-1/8-4 G1/8 4 11.6 5 36.5 21 7.75 14 12 7 42.5
PMCU 704-1/8-6 G1/8 6 11.6 5 36.5 21 7.75 14 12 7 42.5
PMCU 704-1/8-8 G1/8 8 13.9 5 36.5 22.5 7.75 14 12 7 42.5
PMCU 706-1/4-6 G1/4 6 13.9 6 42 24.5 9.25 18.6 15 7 48
PMCU 706-1/4-8 G1/4 8 13.9 6 42 24.5 9.25 18.6 15 7 48
PMCU 706-1/4-10 G1/4 10 16.1 6 42 27 9.25 18.6 15 7 48
PMCU 708-3/8-10 G3/8 10 20.2 6 47.5 29 11 22 18 10 55.5
PMCU 708-3/8-12 G3/8 12 20.2 6 47.5 29 11 22 18 10 55.5
Note: Dimensions in mm. All dimensions are identical for PMVU and PMCO models.

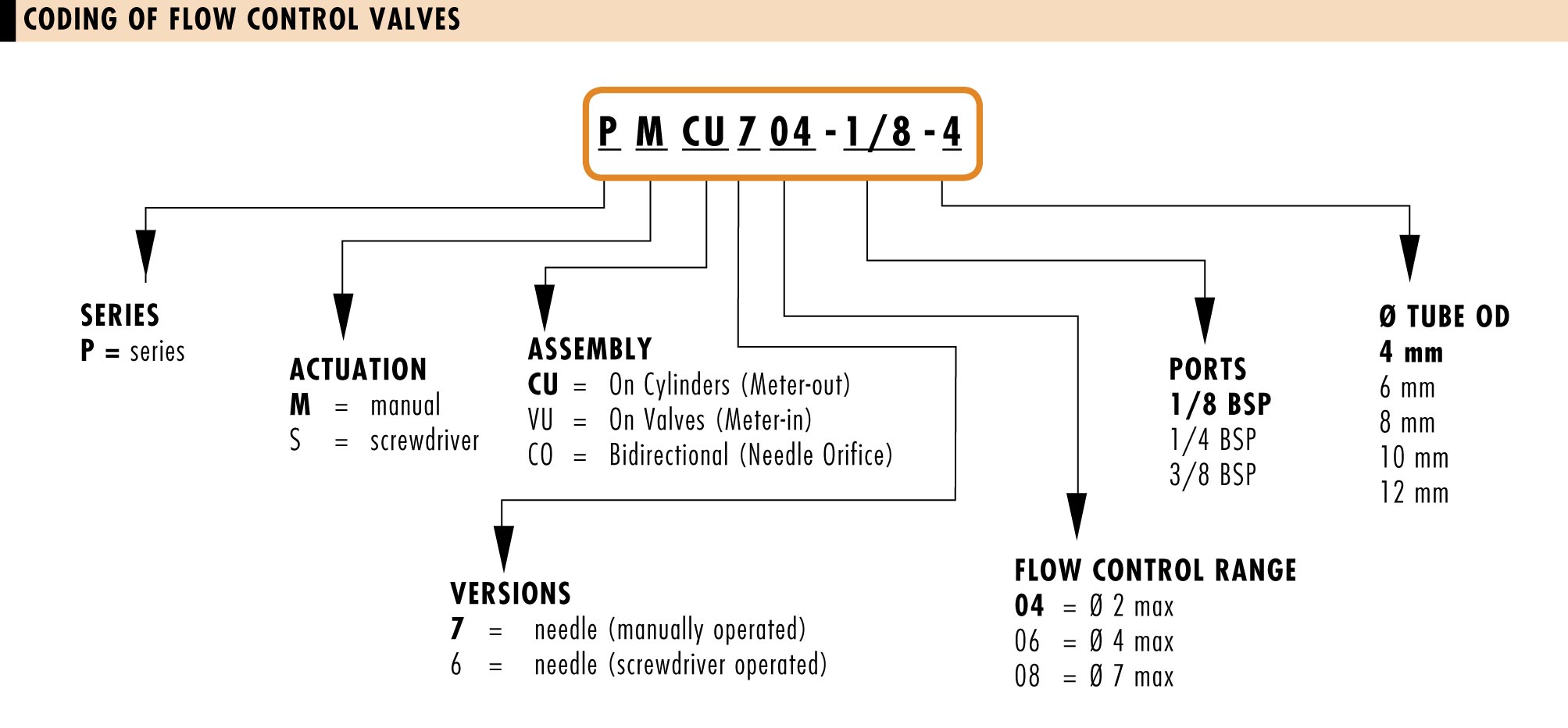

Coding Example
Coding Example
(Click Image to Enlarge)
FLow Diagrams
Flow Diagrams
Technical Specifications
Construction needle type
Valve group unidirectional and bidirectional controller (Meter-out, Meter-in, Needle Orifice)
Materials Nickel-plated brass body, regulation screw, collet and insert; technopolymer: banjo and controller; NBR seals
Mounting by male thread
Ports G1/8 - G1/4 - G3/8
Installation in any position
Operating temperature 0°C - 60°C (with dry air -20°C) (32°F - 175°F, with dry air -4°F)
Operating Pressure 1 - 10 bar
Nominal Pressure 6 bar
Nominal Flow See graph
Nominal Diameter G1/8 = 2 mm, G1/4 = 4 mm, G3/8 = 7mm
Fluid Filtered Air, 25 micron or less
