Possible micro scratches on the tube are
eliminated

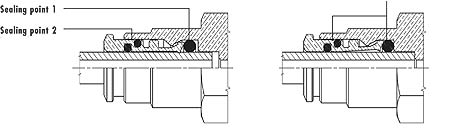

due to 2 o-rings at Sealing Point 2
Sealing point 1 is the traditional sealing point on a push-in fitting. Sealing point 2 works on fresh tubing (non scratched), as well as keeping dirt and
debris from entering tube gland and fitting.
Features
Benefits
Wide Pressure Range: 0.9 – 60 bar,
(27 in Hg – 870 psi)
All-metal, Nickel Plated brass body and collet
Standard Buna-N o-rings can be changed to Viton,
or other materials upon request.

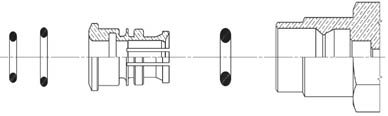

Longer tube support offered by extra long collet,
which holds 3 sealing o-rings
Compact Brass bodies from Brass forgings
Proven Collet release system
No slots or grooves in Collet system exposed
to environment
Triple O-ring Sealing System accepts copper tubing
as well as liquid fluid media with no leakage.
Seals at high pressures like DOT fittings, (metric tubing),
as well as vacuum.
Collets won’t break like plastic release rings and bodies;
More Durable design
Higher holding force, with easier release
Won’t scratch tubes like “bite-ring” designs
Less chance of micro-leakage and bubble-leaks over time
due to damaged tubing
Resists “egg-shaping” of tubing in tight bend radius, causing
leakage after control panel assembly
Resistant to UV exposure
Better resistance to stress-cracking, abrasion, solvents,
detergents, hydrocarbons and other fluid media
Reduced assembly time without taping of threads
Reusable seal design, with no exposed threads, (Spot-Face
O-ring design ensures proper sealing torque)
No tubing assembly or disassembly tools required
Collet System keeps dirt, debris and other environmental
contaminants from entering sealing system causing leaks in
other Push-To-Connect systems
This page is still under construction. We are in the process of adding more information.
If you have any questions related to this new product line, please contact our customer service.
