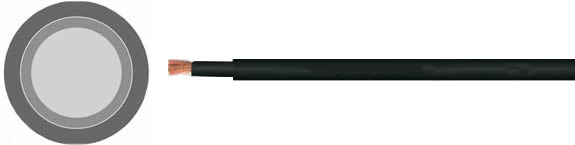

Special PVC single-conductor cable with double insulation approved to UL AWM Style 1032
Temperature Range Flexing
-5°C to +90°C (+23°F to +194°F)
Fixed Installation
-40°C to +90°C (-40°F to +194°F)
Nominal Voltage Acc. to VDE U0/U 600/1000 V
Acc. to UL 1000 V
A.C. Test Voltage, 50 Hz
4000 V
Insulation Resistance Min. 20 MOhm x km
Minimum Bending Radius For flexible installation
Approx. 7,5x cable Ø
For fixed installation
Approx. 3x cable Ø
Approvals
Cable
Construction
Bare copper conductor, fine wire stranded
1st Insulation: special PVC, color black
2nd Insulation: special PVC
Jacket color black
Application
PVC single-conductor cable suitable for medium mechanical stresses with free movement without tensile stress or forced movements in dry, moist and wet rooms, and in open air (fixed installation).
Must not be installed directly in the ground or water.
This two-approvals single-conductor cable is preferred for use in export-oriented mechanical engineering, in machine tools, production lines and systems engineering. =
The product is conformed
with the EC Low-Voltage
Directive 73/23/EEC and
93/68/EEC.
Properties
PVC self-extinguishing and flame retardant according to DIN VDE 0482-332-1-2, DIN EN 60332-1-2 / IEC 60332-1 (equivalent DIN VDE 0472 part 804 test method B)
Note
The product is conformed
with the EC Low-Voltage
Directive 73/23/EEC and
93/68/EEC.
