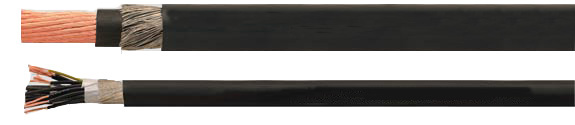

Helukabel Special Cables: HELUWIND WK 103w EMV D-Torsion
Wind Power Cable - UV-Resistant, Single & Multi Conductor, Shielded, UL & CSA Style 10678/21179, FT1

Hi-Tech Controls, Inc, HELUKABEL wires and cables

Heluwind WK 103w EMV D-Torsion, Heluwind, Helu wind, Heluwind 103w EMV, Heluwind WK, Heluwind WK 103, Heluwind 103, UV-Resistant, UV Resistant, Single & Multi Conductor, Single Conductor, Multi Conductor, MultiConductor, Shielded, UL, CSA Style, FT1, 704752, 704755, 704758, 704762, 704763, 704764, 704765, 704767, 704369, 704769, 704768, 704771, 704774, 704775, 704268, 704778, 704779, 704784, 704785, 704786, 704788, 704790, 704792, 704793, 704794, 704795, 704796, 704797, 705039, 704798, 704799, 704800, 704801, 704802, 704803, 704804, 704805, 704806, 704807, 704808, 703147, 703148, 703041, 702418, 703149, 703150, 703151, 703152, 703153, 703154, 703155, 704749, 704750, 704751, 704753, 704754, 704756, 704757, 704759, 704760, 704761, 704766, 704770, 704772, 704773, 704776, 704777, 704780, 704781, 704782, 704783, 704787, 704789, 704791, Hi-Tech Controls, Helukabel
AWG Selection
22
 22
20
 20
18
 18
16
 16 14 14 12 12 10 10 8 8 6 6 4 4
2/0 2/0 3/0 3/0 4/0 4/0 300 300 350 350 500 500 600 600 750 750 1000 1000 630 630


HELUWIND WK 103w EMV D-Torsion (Heat Resistant, JZ)
Helukabel Part-No. Description & No. Conductors x cross-sec. mm2 Outer
Diameter 		Copper weight
kg/km 		Weight
ca. kg/km 		AWG / MCM
704752  HELUWIND WK 103w EMV D-Torsion 4X0.34 7.7 32.0 91.0 22
704755  HELUWIND WK 103w EMV D-Torsion 4X0.5 8.0 37.8 105.0 20
704758  HELUWIND WK 103w EMV D-Torsion 6X0.5 9.2 53.6 130.0 20
704762  HELUWIND WK 103w EMV D-Torsion 10X0.5 11.4 73.0 170.0 20
704763  HELUWIND WK 103w EMV D-Torsion 12X0.5 11.7 88.4 220.0 20
704764  HELUWIND WK 103w EMV D-Torsion 3X0.75 7.7 43.2 97.0 18
704765  HELUWIND WK 103w EMV D-Torsion 4X0.75 8.3 52.6 122.0 18
704767  HELUWIND WK 103w EMV D-Torsion 5X0.75 9.0 63.0 145.0 18
704369  HELUWIND WK 103w EMV D-Torsion 7X0.75 9.7 98.0 200.0 18
704769  HELUWIND WK 103w EMV D-Torsion 4X2X0.75 12.7 91.0 211.0 18
704768  HELUWIND WK 103w EMV D-Torsion 8X0.75 10.7 93.0 220.0 18
704771  HELUWIND WK 103w EMV D-Torsion 12X0.75 12.2 126.9 257.5 18
704774  HELUWIND WK 103w EMV D-Torsion 18X0.75 14.4 179.0 400.0 18
704775  HELUWIND WK 103w EMV D-Torsion 12X2X0.75 17.6 223.0 520.0 18
704268  HELUWIND WK 103w EMV D-Torsion 25X0.75 17.8 256.0 552.0 18
704778  HELUWIND WK 103w EMV D-Torsion 41X0.75 21.2 393.0 795.0 18
704779  HELUWIND WK 103w EMV D-Torsion 50X0.75 23.5 441.0 900.0 18
704784  HELUWIND WK 103w EMV D-Torsion 2X1.5 6.8 44.0 86.0 16
704785  HELUWIND WK 103w EMV D-Torsion 3X1.5 8.8 68.0 133.0 16
704786  HELUWIND WK 103w EMV D-Torsion 4X1.5 9.4 87.8 159.0 16
704788  HELUWIND WK 103w EMV D-Torsion 5X1.5 10.3 104.0 195.0 16
704790  HELUWIND WK 103w EMV D-Torsion 7X1.5 11.9 140.8 247.0 16
704792  HELUWIND WK 103w EMV D-Torsion 12X1.5 14.7 226.8 410.0 16
704793  HELUWIND WK 103w EMV D-Torsion 3X2.5 10.4 104.4 210.0 14
704794  HELUWIND WK 103w EMV D-Torsion 4X2.5 11.2 132.7 264.0 14
704795  HELUWIND WK 103w EMV D-Torsion 5X2.5 12.3 161.0 288.0 14
704796  HELUWIND WK 103w EMV D-Torsion 7X2.5 14.8 223.1 411.0 14
704797  HELUWIND WK 103w EMV D-Torsion 12X2.5 18.2 350.6 638.0 14
705039  HELUWIND WK 103w EMV D-Torsion 19X2.5 18.2 350.6 638.0 14
704798  HELUWIND WK 103w EMV D-Torsion 5X4 13.6 237.4 382.0 12
704799  HELUWIND WK 103w EMV D-Torsion 7X4 16.3 325.0 582.0 12
704800  HELUWIND WK 103w EMV D-Torsion 12X4 20.0 532.1 806.0 12
704801  HELUWIND WK 103w EMV D-Torsion 5X6 17.4 341.0 640.0 10
704802  HELUWIND WK 103w EMV D-Torsion 4X10 17.8 445.6 727.0 8
704803  HELUWIND WK 103w EMV D-Torsion 5X10 19.8 550.2 935.0 8
704804  HELUWIND WK 103w EMV D-Torsion 4X16 21.1 692.2 1072.0 6
704805  HELUWIND WK 103w EMV D-Torsion 5X16 24.4 854.4 1330.0 6
704806  HELUWIND WK 103w EMV D-Torsion 4X25 26.0 1059.0 1664.0 4
704807  HELUWIND WK 103w EMV D-Torsion 5X25 28.6 1327.0 2014.0 4
704808  HELUWIND WK 103w EMV D-Torsion 4X50 37.0 2080.0 3200.0 1
703147  HELUWIND WK 103w EMV D-Torsion 1X70 19.8 739.0 739.0 2/0
703148  HELUWIND WK 103w EMV D-Torsion 1X95 22.5 989.0 989.0 3/0
703041  HELUWIND WK 103w EMV D-Torsion 1X120 25.0 1242.0 1242.0 4/0
702418  HELUWIND WK 103w EMV D-Torsion 1X120 25.0

1242.0

 1242.0 4/0
703149  HELUWIND WK 103w EMV D-Torsion 1X150 27.8 1534.0 1534.0 300
703150  HELUWIND WK 103w EMV D-Torsion 1X185 30.1 1917.0 1917.0 350
703151  HELUWIND WK 103w EMV D-Torsion 1X240 33.0 2451.0 2451.0 500
703152  HELUWIND WK 103w EMV D-Torsion 1X300 39.0 3027.0 3027.0 600
703153  HELUWIND WK 103w EMV D-Torsion 1X400 43.0 4026.0 4026.0 750
703154  HELUWIND WK 103w EMV D-Torsion 1X500 46.5 4986.0 4986.0 1000
703155  HELUWIND WK 103w EMV D-Torsion 1X630 51.0 6234.0 6234.0 630
to top up arrow

AWG Selection
24 24
22
 22
20
 20
18
 18 17 17 16 16

HELUWIND WK 103w EMV D-Torsion (Heat Resistant, DIN 47100)
Helukabel Part-No. Description & No. Conductors x cross-sec. mm2 Outer
Diameter 		Copper weight
kg/km 		Weight
ca. kg/km 		AWG / MCM
704749  HELUWIND WK 103w EMV D-Torsion 2X2X0.25 8.9 27.0 27.0 24
704750  HELUWIND WK 103w EMV D-Torsion 4X2X0.25 9.9 39.0 39.0 24
704751  HELUWIND WK 103w EMV D-Torsion 5X2X0.25 11.1 46.0 46.0 24
704753  HELUWIND WK 103w EMV D-Torsion 2X2X0.34 9.6 35.0 35.0 22
704754  HELUWIND WK 103w EMV D-Torsion 4X2X0.34 11.0 47.0 47.0 22
704756  HELUWIND WK 103w EMV D-Torsion 2X2X0.5 9.8 39.0 39.0 20
704757  HELUWIND WK 103w EMV D-Torsion 4X0.5 8.0 37.8 37.8 20
704759  HELUWIND WK 103w EMV D-Torsion 6X0.5 9.2 53.6 53.6 20
704760  HELUWIND WK 103w EMV D-Torsion 4X(2X0.5) 11.5 111.0 111.0 20
704761  HELUWIND WK 103w EMV D-Torsion 4X2X0.5 11.3 42.0 42.0 20
704766  HELUWIND WK 103w EMV D-Torsion 2X2X0.75 10.4 54.0 54.0 18
704770  HELUWIND WK 103w EMV D-Torsion 4X2X0.75 12.7 91.0 91.0 18
704772  HELUWIND WK 103w EMV D-Torsion 12X0.75 12.2 126.9 126.9 18
704773  HELUWIND WK 103w EMV D-Torsion 8X2X0.75 17.1 170.0 170.0 18
704776  HELUWIND WK 103w EMV D-Torsion 12X2X0.75 17.6 223.0 223.0 18
704777  HELUWIND WK 103w EMV D-Torsion 32X0.75 18.8 294.0 294.0 18
704780  HELUWIND WK 103w EMV D-Torsion 4X1.0 8.7 56.0 56.0 17
704781  HELUWIND WK 103w EMV D-Torsion 6X1.0 10.2 82.0 82.0 17
704782  HELUWIND WK 103w EMV D-Torsion 8X1.0 11.7 106.0 106.0 17
704783  HELUWIND WK 103w EMV D-Torsion 12X1.0 13.3 150.0 150.0 17
704787  HELUWIND WK 103w EMV D-Torsion 2X2X1.5 12.1 90.0 90.0 16
704789  HELUWIND WK 103w EMV D-Torsion 3X2X1.5 14.0 120.0 120.0 16
704791  HELUWIND WK 103w EMV D-Torsion 4X2X1.5 14.6 150.0 150.0 16
to top up arrow
Technical Data Helukabel
  • Temperature Range
    WK 103w
    Flexing
    -35°C to +90°C (-31°F to +194°F)
    Fixed Installation
    -40°C to +90°C (-40°F to +194°F)
    Installation
    -20°C to +90°C (-25°F to +194°F)
  • Nominal Voltage
    According to VDE U0/U 0.6/1 kV
    According to UL 1000 V, for remanufacturers
  • Test voltage, 50 Hz
    3000 V
  • Minimum Bending Radius
     10x cable Ø
  • Torsion Application
     +/- 90° per 1m
  • Approvals
    UL style 10678 to 400 mm2 Single Conductor
    UL style 21179 Multi Conductor
    cRUus, CE approved
  • Flame Test
     FT1
Approvals
RoHSUL CSA CE VDE
Cable Construction
  • Special bare stranded copper wire, acc. to DIN VDE 0295
  • Special insulation PVC heat-resistant
  • Conductor colors, black with numbers + gnye or color code DIN 47100
  • Tinned copper wrapped at EMI-shielded types
  • Special jacket compound PVC heat-resistant
  • Jacket color: Black
Application
The power of wind, sun and water are alternative energy sources which are always available and inexhaustible. In recent years, many powerful wind power systems have been built worldwide. For cabling in these systems, we can deliver specially manufactured cable for high power handling and control wiring.
CE Approval = The product is conformed with the EC Low-Voltage Directive 73/23/EEC and 93/68/EEC.
Properties
  • UV resistant
  • RoHS approved
  • Multiclimatical app.
  • Torsion tested
  • Flame retardant
  • Oil resistant
  • Recyclable
  • Easy to tailor
Note
  • The listed part numbers show only a small list of our production range. All types can be produced as Single or Multi Conductor, shielded or unshielded versions. Please contact us with your individual requirements.
  • The product is conformed with the EC Low-Voltage Directive 73/23/EEC and 93/68/EEC.
Cable Accessories
  • Coming Soon!
