Sealcon, Inc, European & Domestic cable

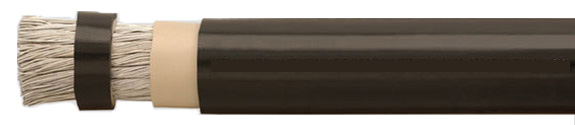

Special Cables: Heluwind-WK-Powerline-Alu-105C Heluwind-WK-Powerline-Alu-105C, Wind Power Cable - UV-Resistant, Halogen-Free, Shielded & Unshielded, (LSZH), UL & CSA Approved
European Part-No. Description & No. of cores x cross-sec. mm2 Outer
Diameter
mm 		Alu Weight
kg/km 		Weight approx.
kg/km 		Power rating A
706408  HELUWIND Powerline ALU  WK 105C 1X150 22.4 441 665 441
706088  HELUWIND Powerline ALU  WK 105C 1X185 24.5 544 950 565
706089  HELUWIND Powerline ALU  WK 105C 1X240 27.5 706 1150 660
706804  HELUWIND Powerline ALU  WK 105C 1X300 31.9 882 1398 776
706085  HELUWIND Powerline ALU  WK 105C 1X400 36.7 1176 1680 952
Technical Data European
  • Temperature Range
    Static
    -40°C to +105°C (-40°F to +221°F)
    Flexing
    -20°C to +105°C (-4°F to +221°F)
    Conductor Temperature
    Max. 105°C
  • Test Voltage 50Hz
    2500 V or 9KV
  • Power rating +30°C ambient temperature in open air.
  • Minimum Bending Radius
    4x cable diameter in accordance to DIN VDE 0298 Part 3, Table 2
  • Approvals
     in acc. to DIN VDE 0250-813 CE compliant
  • Flame Test
     IEC 60332-1
Approvals
RoHSUL CSA CE
Cable Construction
  • Special bare stranded copper wire
  • Special insulation heat-resistant
  • Core identification black
  • Sheath Special compound heat-resistant
  • Sheath colour black
Application
The power of wind, sun and water are alternative energy sources which are always available and inexhaustible. In recent years, many powerful wind power systems have been built worldwide. For cabling in these systems, we can deliver specially manufactured cable for high power handling and control wiring.
CE Approval = The product is conformed with the EC Low-Voltage Directive 73/23/EEC and 93/68/EEC.
Properties
  • UV resistant
  • RoHS approved
  • Flame retardant
  • Oil resistant
  • rexycable
  • easy to tailor
Note
  • The HELUWIND® WK series was specifically designed for wind power applications. We supply the leading wind turbine manufacturers with our cables. CE= The product confirms to the EC low-voltage directive 2006/95/EG.
Cable Accessories
  • Coming Soon!
