Helukabel Special Cables:

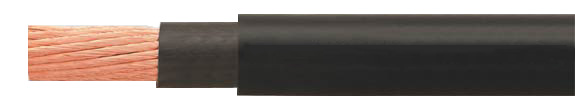

HELUWIND WK H07BN4-F WIND - Torsion
Wind Power Cable - Torsion +/- 150°/1m, UV-Resistant, 750V/90°C
Hi-Tech Controls, Inc, HELUKABEL wires and cables
Helukabel
Part-No.
Description & No.
Conductors x cross-sec. mm2
Outer
Diameter
mm
Copper
Weight
kg/km
Weight
ca. kg/km
703704
HELUWIND WK H07BN4-F 1X25
13.1
240.0
516.0
703403
HELUWIND WK H07BN4-F 1X35
14.6
336.0
670.0
703404
HELUWIND WK H07BN4-F 1X50
17.1
480.0
840.0
703390
HELUWIND WK H07BN4-F 1X70
19.2
672.0
1112.0
703391
HELUWIND WK H07BN4-F 1X95
22.0
912.0
1520.0
703392
HELUWIND WK H07BN4-F 1X120
24.4
1152.0
1880.0
703393
HELUWIND WK H07BN4-F 1X150
28.0
1440.0
2513.0
703394
HELUWIND WK H07BN4-F 1X180
30.0
1776.0
2272.0
703395
HELUWIND WK H07BN4-F 1X240
34.0
2304.0
3534.0
703396
HELUWIND WK H07BN4-F 1X300
36.1
2880.0
4020.0
703397
HELUWIND WK H07BN4-F 1X400
41.5
3840.0
5640.0
703398
HELUWIND WK H07BN4-F 1X5000
46.0
4800.0
6000.0
703399
HELUWIND WK H07BN4-F 1X630
54.0
6048.0
6900.0
Technical
Data
Helukabel
Temperature Range Ambient temperature
at least
-45°C (-49°F),
90°C (+194°F) at the conductor
Nominal Voltage 450/750V
Test Voltage
3000V
Minimum Bending Radius 6x cable Ø
Torsion Application +/-150°/1m
Approvals CE Approved
Approvals
Cable
Construction
Special bare stranded copper wire, as per DIN VDE 0295 cl. 5
Special EPR insulation and jacket compound
Application
The power of wind, sun and water are alternative energy sources which are always available and inexhaustible. In recent years, many powerful wind power systems have been built worldwide. For cabling in these systems, we can deliver specially manufactured cable for high power handling and control wiring. =
The product is conformed
with the EC Low-Voltage
Directive 73/23/EEC and
93/68/EEC.
Properties
RoHS Approved
UV-Resistant
Note
The listed part numbers show only a small list of our production range. All types can be produced as Single or Multi Conductor, shielded or unshielded versions. Please contact us with your individual requirements.
The product is conformed
with the EC Low-Voltage
Directive 73/23/EEC and
93/68/EEC.
