Wind Power Cable - FT4, UV-Resistant, UL 44 1kV, 90°C, VW-1, LS, MSHA
Hi-Tech Controls, Inc, HELUKABEL wires and cables

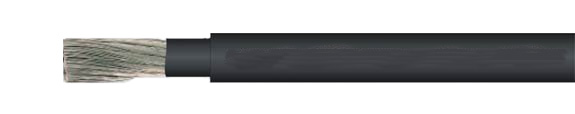

HELUWIND WK DLO 2kV
Helukabel Part-No.
Outer
Diameter
mm
Copper
Weight
kg/km
Weight
ca. kg/km
AWG / MCM no.
703156
5.9
22.0
37.0
14
703162
16.1
510.0
637.0
1
703163
17.5
465.0
715.0
1/0
702862
18.5
656.0
830.0
2/0
703161
12.6
339.0
370.0
2
703164
20.2
930.0
1104.0
3/0
703160
11.5
237.0
286.0
4
702862
21.7
1103.0
1298.0
4/0
703159
10.1
140.0
200.0
6
702513
8.2
82.8
142.0
8
703158
7.2
61.0
100.0
10
703157
6.3
33.0
69.0
12
702514
24.8
1280.0
1590.0
262 kcmil
703165
26.4
1590.0
1872.0
313 kcmil
703166
28.2
1900.0
2176.0
373 kcmil
703167
30.0
2272.0
2570.0
444 kcmil
702515
32.2
2608.0
3046.0
535 kcmil
703168
34.8
3300.0
3600.0
646 kcmil
703169
37.0
3970.0
4290.0
777 kcmil
703170
39.5
4780.0
5144.0
929 kcmil
703171
44.0
5690.0
6070.0
1111 kcmil
Technical
Data
Helukabel
Temperature Range Flexing
-40°C to +90°C (-40°F to +194°F)
Nominal Voltage DLO 2000V
Approvals UL44, CSA, ICEA S-68-516/NEMA WC-8,
MSHA, VW-1, for CT use, LS Certified
Flame Test FT4, FT1
Approvals
Cable
Construction
Special tinned stranded copper wire, acc. to ASTM B-170, ASTM B-33
Special EPE insulation
Special CPE jacket compound, non-adhesive
Application
The power of wind, sun and water are alternative energy sources which are always available and inexhaustible. In recent years, many powerful wind power systems have been built worldwide. For cabling in these systems, we can deliver specially manufactured cable for high power handling and control wiring.
Properties
RoHS Approved
UV Resistant
Note
The listed part numbers show only a small list of our production range. All types can be produced as Single or Multi Conductor, shielded or unshielded versions. Please contact us with your individual requirements.
