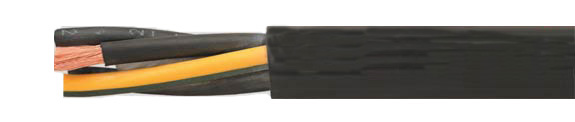

Wind Power Cable - UV-Resistant, Halogen-Free, Single & Multi Conductor, Shielded & Unshielded, FT4, UL & CSA Approved
Hi-Tech Controls, Inc, HELUKABEL wires and cables
Helukabel Part-No.
Description & No.
Conductors x cross-sec. mm2
Outer
Diameter
mm
Copper
Weight
kg/km
Weight
ca. kg/km
703246
HELUWIND WK 125 4X0.34
7.7
32.0
91.0
704109
HELUWIND WK 125 2X0.5
6.9
23.3
75.0
703247
HELUWIND WK 125 4G0.5
8.0
37.8
105.0
703249
HELUWIND WK 125 6G0.5
9.2
53.6
130.0
703248
HELUWIND WK 125 8G0.5
11.5
69.2
210.0
703251
HELUWIND WK 125 12G0.5
11.7
88.4
220.0
703969
HELUWIND WK 125 41G0.72
21.2
371.0
795.0
704116
HELUWIND WK 125 3G0.75
7.9
40.0
100.0
703971
HELUWIND WK 125 4G0.75
11.2
55.0
140.0
703972
HELUWIND WK 125 6G0.75
11.7
72.0
180.0
704117
HELUWIND WK 125 7G0.75
10.5
77.0
155.0
703973
HELUWIND WK 125 8G0.75
12.7
88.0
226.0
703967
HELUWIND WK 125 8G0.75
10.7
85.0
182.0
703968
HELUWIND WK 125 18G0.75
14.5
170.0
365.0
703974
HELUWIND WK 125 24G0.75
17.6
219.0
540.0
704118
HELUWIND WK 125 25G0.75
17.5
226.0
480.0
703970
HELUWIND WK 125 50G0.75
23.5
441.0
954.0
704119
HELUWIND WK 125 8G1
16.3
114.0
280.0
Technical
Data
Helukabel
Temperature Range Flexing
-40°C to +90°C (-40°F to +194°F)
Fixed Installation
Acc. to UL -40°C to +90°C (-40°F to +194°F)
Nominal Voltage According to VDE U0/U 0.6/1 kV
According to UL 1000V
Test Voltage, 50 Hz
3000 V
Minimum Bending Radius 10x cable Ø
Approvals UL style 10553 Single Conductor types
UL style 20234 Multi Conductor types
cRUus, CE certified
Flame Test FT4 in preparation
Approvals
Cable
Construction
Special bare stranded copper wire, acc. to DIN VDE 0295
Special conductor insulation
conductors cabled together by Multi Conductor types
Special jacket compound, non-adhesive
Application
The power of wind, sun and water are alternative energy sources which are always available and inexhaustible. In recent years, many powerful wind power systems have been built worldwide. For cabling in these systems, we can deliver specially manufactured cable for high power handling and control wiring. =
The product is conformed
with the EC Low-Voltage
Directive 73/23/EEC and
93/68/EEC.
Properties
UV resistant
RoHS approved
Highly flame retardant
Oil resistant
Multi climate operation
Extremely abrasion-proof jacket
Sea water resistant
Note
G = with green-yellow grounding
X = without green-yellow grounding
The listed part numbers show only a small list of our production range. All types can be produced as Single or Multi Conductor, shielded or unshielded versions. Please contact us with your individual requirements.
The product is conformed
with the EC Low-Voltage
Directive 73/23/EEC and
93/68/EEC.
