Helukabel Single Conductors:

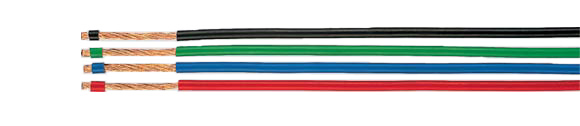

LifY Single Conductor
Extra Fine Wires with Highest Flexibility
Hi-Tech Controls, Inc, HELUKABEL wires and cables
Helukabel Part-No.
Cross-Sec.
mm2
Cond.
make-up nom.val.
n x wire Ø
Conductor
Color
Outer
Diameter
mm
Copper
Weight
kg/km
Weight
ca. kg/km
AWG
151__
LifY 0.1
51x0.05
To
complete Part number please see table
above for color code
1.0
1.2
2.1
-
152__
LifY 0.14
72x0.05
1.1
1.4
2.6
26
153__
LifY 0.25
65x0.07
1.4
2.5
4.2
24
154__
LifY 0.5
132x0.07
2.2
5.5
8.0
20
155__
LifY 0.75
195x0.07
2.4
8.0
12.0
18
156__
LifY 1.0
260x0.07
2.6
10.8
18.0
17
157__
LifY 1.5
192x0.1
3.1
15.0
22.0
16
158__
LifY 2.5
320x0.1
3.9
25.0
37.0
14
159__
LifY 4.0
512x0.1
5.0
40.0
50.0
12
15093
LifY 6.0
768x0.1
black
6.5
60.0
71.0
10
15135
LifY 6.0
768x0.1
green-yellow
6.5
60.0
71.0
10
15115
LifY 6.0
768x0.1
blue
6.5
60.0
71.0
10
15116
LifY 6.0
768x0.1
brown
6.5
60.0
71.0
10
15114
LifY 6.0
768x0.1
red
6.5
60.0
71.0
10
15094
LifY 10.0
1280x0.1
black
7.5
100.0
130.0
8
15136
LifY 10.0
1280x0.1
green-yellow
7.5
100.0
130.0
8
15118
LifY 10.0
1280x0.1
blue
7.5
100.0
130.0
8
15119
LifY 10.0
1280x0.1
brown
7.5
100.0
130.0
8
15117
LifY 10.0
1280x0.1
red
7.5
100.0
130.0
8
15095
LifY 16.0
2048x0.1
black
9.0
160.0
187.0
6
15137
LifY 16.0
2048x0.1
green-yellow
9.0
160.0
187.0
6
15121
LifY 16.0
2048x0.1
blue
9.0
160.0
187.0
6
15122
LifY 16.0
2048x0.1
brown
9.0
160.0
187.0
6
15120
LifY 16.0
2048x0.1
red
9.0
160.0
187.0
6
15096
LifY 25.0
3234x0.1
black
10.8
240.0
294.0
4
15138
LifY 25.0
3234x0.1
green-yellow
10.8
240.0
294.0
4
15124
LifY 25.0
3234x0.1
blue
10.8
240.0
294.0
4
15125
LifY 25.0
3234x0.1
brown
10.8
240.0
294.0
4
15123
LifY 25.0
3234x0.1
red
10.8
240.0
294.0
4
15097
LifY 35.0
4508x0.1
black
11.9
336.0
380.0
2
15139
LifY 35.0
4508x0.1
green-yellow
11.9
336.0
380.0
2
15127
LifY 35.0
4508x0.1
blue
11.9
336.0
380.0
2
15128
LifY 35.0
4508x0.1
brown
11.9
336.0
380.0
2
15126
LifY 35.0
4508x0.1
red
11.9
336.0
380.0
2
15098
LifY 50.0
6468x0.1
black
14.9
480.0
521.0
1
15140
LifY 50.0
6468x0.1
green-yellow
14.9
480.0
521.0
1
15130
LifY 50.0
6468x0.1
blue
14.9
480.0
521.0
1
15131
LifY 50.0
6468x0.1
brown
14.9
480.0
521.0
1
15129
LifY 50.0
6468x0.1
red
14.9
480.0
521.0
1
15099
LifY 70.0
8967x0.1
black
17.0
672.0
740.0
2/0
15141
LifY 70.0
8967x0.1
green-yellow
17.0
672.0
740.0
2/0
15133
LifY 70.0
8967x0.1
blue
17.0
672.0
740.0
2/0
15134
LifY 70.0
8967x0.1
brown
17.0
672.0
740.0
2/0
15132
LifY 70.0
8967x0.1
red
17.0
672.0
740.0
2/0
Color
Code
00 = green
01 = black
02 = red
03 = blue
04 = brown
05 = white
06 = gray
07 = violet
08 = yellow
09 = orange
10 = transparent
11 = pink
12 = beige
13 = two-colored
Technical
Data
Helukabel
Special PVC insulated extra
fine stranded wire
Extremely flexible by special
design
Adapted to DIN VDE 0250, 0281,
0295
Temperature Range Flexing
-15°C
to
+80°C
Operating Voltage Up to 2.5 mm2 300
V
(Not for purposes of high current
and power installation)
Nominal Voltage
0.5 mm2 up to 1.0
mm2
U0/U
300/500V
From 1.5 mm2 U0/U
450/750V
Test Voltage
Up to 0.25 mm2 = 2
kV
0.5 - 1.0 mm2 - 2.5
kV
From 1.5 mm2 = 3 kV
Bending Radius Flexing, approximately
8x cable Ø
Approvals
Cable
Construction
Bare copper, extra fine wire conductors,
bunch stranded
PVC conductor insulation with elastic PVC
Application
The LifY single
conductors are used as super flexible
insulated strand wires for switch
cabinets, as measuring cable for
testing, laboratories, research
etc. =
The product
is conformed
with
the EC
Low-Voltage
Directive
73/23/EEC
and 93/68/EEC.
Properties
PVC self-extinguishing and flame
retardant according to VDE 0482-332-1-2, DIN EN 60332-1-2 / IEC 60332-1
(equivalent DIN VDE 0472 part 804 test
method B)
The materials used in manufacture
are cadmium-free, contain no silicone
and are free from substances harmful to
the wetting properties of lacquers
Note
AWG sizes are approximate equivalent
sizes. The actual cross-section is in mm2.
