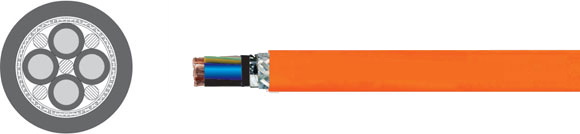

Servo, Feedback & Motor Cable: MOTORFLEX-X EMV 1/1 |
| Triple Shielded, Low
Capacitance, +80°C/+176°F, 600 V, PUR Flexible VFD Motor
Supply Cable |
|
|
|
- Special PUR motor power supply cable
for frequency converter to UL AWM Style
20234 and CSA AWM based on DIN VDE
0250
- Temperature Range
Flexing
-30°C
to +80°C (-22°F
to +176°F)
Fixed Installation
-40°C to +80°C (-40°F
to +176°F)
- Nominal Voltage
Acc. to UL 600
V
Acc. to VDE U0/U 0.6/1 kV
- A.C. Test Voltage,
50 Hz 3000 V
- Mutual Capacitance at
4 kHz,
depending on conductor cross-section
Conductor/conductor 70-250 nF/km
Conductor/shielding 110-410 nF/km
|
- Insulation Resistance
Min. 200 MOhm x km
- Minimum Bending Radius
Fixed installation,
For outside Ø to 12 mm = 5x
cable Ø
>12 to 20 mm = 7.5x cable Ø
>20 mm = 10x cable Ø
Free-movement,
For outside Ø to 12 mm = 10x
cable Ø
>12 to 20 mm = 15x cable Ø
>20 mm = 20x cable Ø
- Coupling Resistance
Max. 250 Ohm/km
- Radiation Resistance
Up to 80x106cJ/kg
(up to 80 Mrad)
|
|
|
| |
|
| |
| Part-No. |
Description & No.
Conductors
x cross-sec. mm2 |
Outer
Dia. |
Mutual
Capacitance |
Coupling
Resistance |
Power
Ratings**)
w/ 3 loaded conductors in Ampere |
Copper Weight
kg/km |
Weight
ca. kg/km |
AWG |
conductor/
conductor ca. nF/km |
conductor/
shield
ca. nF/km |
w/
1 MHz
Ohm/km |
w/
30 MHz
Ohm/km |
701309 |
MOTORFLEX-X EMV
1/1 4x1.5 |
11.5 |
70.0 |
110.0 |
- |
- |
21.0 |
95.0 |
230.0 |
16 |
701310 |
MOTORFLEX-X
EMV 1/1 4x2.5 |
13.5 |
80.0 |
130.0 |
18.0 |
210.0 |
31.0 |
150.0 |
300.0 |
14 |
701311 |
MOTORFLEX-X
EMV 1/1 4x4 |
15.8 |
90.0 |
150.0 |
11.0 |
210.0 |
40.0 |
235.0 |
485.0 |
12 |
701312 |
MOTORFLEX-X
EMV 1/1 4x6 |
17.8 |
90.0 |
150.0 |
6.0 |
150.0 |
52.0 |
320.0 |
630.0 |
10 |
701313 |
MOTORFLEX-X
EMV 1/1 4x10 |
21.6 |
120.0 |
200.0 |
7.0 |
180.0 |
72.0 |
533.0 |
860.0 |
8 |
701314 |
MOTORFLEX-X
EMV 1/1 4x16 |
25.4 |
140.0 |
230.0 |
9.0 |
190.0 |
96.0 |
789.0 |
1290.0 |
6 |
78358 |
MOTORFLEX-X EMV
1/1 4X25 |
31.0 |
120.0 |
211.0 |
4.0 |
95.0 |
127.0 |
1180.0 |
1800.0 |
4 |
79845 |
MOTORFLEX-X EMV
1/1 4X35 |
33.0 |
150.0 |
260.0 |
3.0 |
85.0 |
158.0 |
1662.0 |
2610.0 |
2 |
701315 |
MOTORFLEX-X
EMV 1/1 4x50 |
39.0 |
190.0 |
320.0 |
2.0 |
40.0 |
192.0 |
2345.0 |
2950.0 |
1 |
701316 |
MOTORFLEX-X
EMV 1/1 4x70 |
45.0 |
190.0 |
320.0 |
2.0 |
45.0 |
246.0 |
3196.0 |
3950.0 |
2/0 |
701317 |
MOTORFLEX-X
EMV 1/1 4x95 |
50.1 |
250.0 |
410.0 |
1.0 |
50.0 |
295.0 |
4316.0 |
5300.0 |
3/0 |
701318 |
MOTORFLEX-X
EMV 1/1 4x120 |
54.2 |
- |
- |
- |
- |
344.0 |
5435.0 |
6600.0 |
4/0 |
701319 |
MOTORFLEX-X
EMV 1/1 4x150 |
61.3 |
- |
- |
- |
- |
395.0 |
6394.0 |
7040.0 |
300
kcmil |
701320 |
MOTORFLEX-X
EMV 1/1 4x185 |
64.2 |
- |
- |
- |
- |
450.0 |
7639.0 |
8380.0 |
350
kcmil |
|
|
| **) The current carrying capacity
for permanent operation at ambient temperature of +30°C/+86°F.
For deviating ambient temperatures the conversion factors
should be used and for further information see the
indication in DIN VDE 0298 part 4. |
|
- Bare copper,
fine wire in acc. with DIN VDE 0295 cl.
5 and IEC 60228 cl. 5
- Special polyethylene
(PE) conductor insulation
- Conductor colors black,
brown, blue
- Green-yellow
grounding
- Conductors stranded
in layers
- Shield of semi-conductive
fleece, aluminum-coated polyester film
and tinned copper braiding, coverage
approx. 85%
- PUR outer jacket
- Jacket
color: Orange (RAL 2003) according
to DESINA®
|
|
|
- PUR outer jacket: low adhesion, flame
retardant, extremely abrasion resistant,
halogen-free, resistant to UV, oil, hydrolysis
and microbial attack
- PUR jacket: self-extinguishing and
flame retardant, test method B acc. to
DIN VDE 0472 part 804 and IEC 60332-1
- This shielded motor power supply cable,
with low mutual capacitance because of
the special PE conductor insulation, enables
low-loss transmission of power compared
to PVC-outer jacket power supply cables
- The optimal triple shielding enables
interference-free operation of frequency
converters
- Optimum compliance with requirements
for electromagnetic interference (EMI)
due to the triple shielding
- The cross-linked special polyethylene
insulation increases the current rating
of the MOTORFLEX-EMV-X cable
Tests
- Low mutual capacitance: tested acc.
to DIN VDE 0472 part 504, test method
B
|
|
|
- To optimize the EMI features we recommend
a large round contact of the copper braiding
on both ends
|
|
This MOTORFLEX-X 1/1 two-approvals,
triple-shielded motor power supply
cable for frequency converters
provides outstanding EMC in machines
and systems.
Suitable as a supply and connecting
cable for high mechanical stresses,
in fixed installations and occasional
free movements in dry, moist
and wet environments, as well
as outdoors.
Areas of application include
machine tools, processing and manufacturing
machinery, machining centers, industrial
robots, transfer lines, handling
equipment, etc.
EMI =
Electromagnetic Interference
To optimize the EMI features we recommend a large round contact of the copper
braiding on both ends.
 =
The product is conformed with the EC Low-Voltage Directive 73/23/EEC and 93/68/EEC. |
|
|
|
|
|
|
