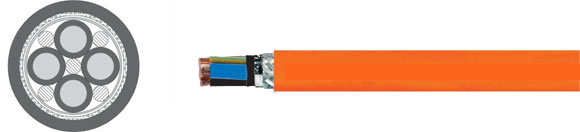

Servo, Feedback & Motor Cable: MOTORFLEX EMV 1/1 |
| Triple Shielded, Low
Capacitance, +80°C/+176°F, 600 V, Highly Flexible VFD Motor
Supply Cable |
|
|
|
- Special PUR motor power supply cable
for frequency converter to UL AWM Style
20234 and CSA AWM Based on DIN VDE
0250
- Temperature Range
Flexing
-30°C
to +80°C (-22°F
to +176°F)
Fixed Installation
-40°C to +80°C (-40°F
to +176°F)
- Nominal Voltage
Acc. to UL 1000 V
Acc. to VDE U0/U
0.6/1kV
- A.C. Test Voltage,
50 Hz 3000 V
- Insulation Resistance
Min. 200 MOhm x
km
- Coupling Resistance
Max. 250 Ohm/km
|
- Mutual Capacitance at 4 kHz,
depending on conductor cross-section
Conductor/conductor 70-250
nF/km
Conductor/shield 110-410 nF/km
- Radiation Resistance
Up to 80x106 cJ/kg (up to 80 Mrad)
- Minimum Bending Radius
Fixed installation,
for outside Ø
- To 12 mm = 5x cable Ø
- >12 to 20 mm =7.5x cable Ø
- >20 mm = 10x cable Ø
- Free movement, for outside Ø
- To 12 mm = 10x cable
Ø
- >12 to 20 mm = 15x cable Ø
- >20 mm = 20x cable Ø
|
|
|
| |
|
| |
| Part-No. |
Description & No.
Conductors
x cross-sec. mm2 |
Outer
Dia. |
Mutual
Capacitance |
Coupling
Resistance |
Power
Ratings**)
w/ 3 loaded conductors in Ampere |
Copper Weight
kg/km |
Weight
ca. kg/km |
AWG |
conductor/
conductor ca. nF/km
|
conductor/
shield
ca. nF/km |
w/
1 MHz
Ohm/km |
w/
30 MHz
Ohm/km |
78377 |
MOTORFLEX EMV 1/1
4x1.5 |
11.5 |
70.0 |
110.0 |
- |
- |
18.0 |
95.0 |
230.0 |
16 |
78378 |
MOTORFLEX
EMV 1/1 4x2.5 |
13.5 |
80.0 |
130.0 |
18.0 |
210.0 |
26.0 |
150.0 |
300.0 |
14 |
78379 |
MOTORFLEX
EMV 1/1 4x4 |
15.8 |
90.0 |
150.0 |
11.0 |
210.0 |
34.0 |
235.0 |
485.0 |
12 |
78380 |
MOTORFLEX
EMV 1/1 4X6 |
17.8 |
90.0 |
150.0 |
6.0 |
150.0 |
44.0 |
320.0 |
630.0 |
10 |
78381 |
MOTORFLEX
EMV 1/1 4x10 |
21.6 |
120.0 |
200.0 |
7.0 |
180.0 |
61.0 |
533.0 |
860.0 |
8 |
78382 |
MOTORFLEX
EMV 1/1 4x16 |
25.4 |
120.0 |
210.0 |
9.0 |
190.0 |
82.0 |
789.0 |
1290.0 |
6 |
701308 |
MOTORFLEX
EMV 1/1 4x25 |
31.0 |
140.0 |
230.0 |
4.0 |
95.0 |
108.0 |
1180.0 |
1800.0 |
4 |
78383 |
MOTORFLEX
EMV 1/1 4x35 |
33.0 |
150.0 |
260.0 |
3.0 |
85.0 |
135.0 |
1662.0 |
2610.0 |
2 |
78384 |
MOTORFLEX
EMV 1/1 4x50 |
39.0 |
190.0 |
320.0 |
2.0 |
40.0 |
168.0 |
2345.0 |
2950.0 |
1 |
78385 |
MOTORFLEX
EMV 1/1 4x70 |
45.0 |
190.0 |
320.0 |
2.0 |
45.0 |
207.0 |
3196.0 |
3950.0 |
2/0 |
78386 |
MOTORFLEX
EMV 1/1 4x95 |
50.1 |
250.0 |
410.0 |
1.0 |
50.0 |
250.0 |
4316.0 |
5300.0 |
3/0 |
78387 |
MOTORFLEX
EMV 1/1 4x120 |
54.2 |
- |
- |
- |
- |
292.0 |
5435.0 |
6600.0 |
4/0 |
78388 |
MOTORFLEX
EMV 1/1 4x150 |
61.3 |
- |
- |
- |
- |
335.0 |
6394.0 |
7040.0 |
300
kcmil |
78479 |
MOTORFLEX
EMV 1/1 4x185 |
64.2 |
- |
- |
- |
- |
382.0 |
7639.0 |
8380.0 |
350
kcmil |
|
|
| **) The current carrying capacity
for permanent operation at ambient temperature of +30°C/+86°F.
For deviating ambient temperatures the conversion factors
should be used and for further information see the
indication in DIN VDE 0298 part 4. |
|
- Bare copper,
fine wire in acc. with DIN VDE 0295 cl.
5 and IEC 60228 cl. 5
- Special polyethylene
(PE) conductor insulation
- Conductors
colors black, brown & blue
- Green-yellow
grounding
- Shield of semi-conductive
fleece, aluminum-coated polyester film
and tinned copper braiding, coverage
approx. 85%
- PUR outer jacket
- Jacket
color: Orange (RAL 2003) according to
DESINA®
|
|
|
- PUR outer jacket: low adhesion, flame
retardant, extremely abrasion resistant,
halogen-free, resistant to UV, oil, hydrolysis
and microbial attack
- PUR jacket: self extinguishing and
flame retardant, test method B acc. to
DIN VDE 0472 part 804 and IEC 60332-1
- This shielded motor power supply cable, with low mutual capacitance because of the special PE conductor insulation, enables low-loss transmission of power compared to PVC-shielded power supply cables
- The optimal triple shielding enables interference-free operation of frequency converters
- Optimum compliance with requirements
for electromagnetic interference (EMI)
due to the triple shielding
Tests
- Low mutual capistance: tested acc. to DIN DE 0472 part 504, test method B
|
|
|
- To optimize the EMI features we recommend
a large round contact of the copper braiding
on both ends
|
|
This MOTORFLEX
1/1 two approvals, triple shielded
motor power supply cable for frequency
converters provides outstanding
EMI in machines and systems. Suitable
as a supply and connecting cable
for high mechanical stresses, in
Fixed Installations and occasional
free movements in dry, moist, wet
rooms, as well as outdoors. Areas
of application include machine
tools, processing and manufacturing
machinery, machining centers, industrial
robots, transfer lines, handling
equipment, etc.This shielded motor
power supply cable, with low mutual
capacitance because of the special
PE conductor insulation, enables low-loss
transmission of power compared to
PVC-jackets power supply cables.
The optimal triple shielding enables
interference free operation of frequency
converters.
EMI =
Electromagnetic Interference
To optimize the EMI features we recommend a large round contact of the copper
braiding on both ends.
 =
The product is conformed with the EC Low-Voltage Directive 73/23/EEC and 93/68/EEC. |
|
|
|
|
|
|
