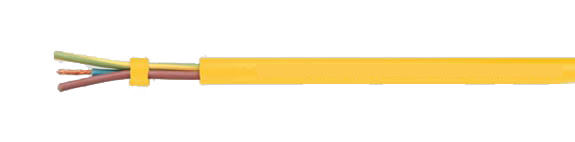

YELLOWFLEX cold flexible, robust, Allweather, Rubber & Welding Cable, Hi-Tech Controls, Helukabel

Helukabel Part-No.	Description & No. Conductors x cross-sec. mm²	Outer Diameter mm	Cop. weight kg/km	Weight ca. kg/km	AWG
37259	YELLOWFLEX 2X1	8.4	19.0	98.0	17
37260	YELLOWFLEX 3G1	9.2	29.0	131.0	17
37261	YELLOWFLEX 4G1	9.7	38.0	150.0	17
37262	YELLOWFLEX 5G1	11.0	48.0	220.0	17
37263	YELLOWFLEX 2X1.5	9.2	29.0	135.0	16
37264	YELLOWFLEX 3G1.5	9.8	43.0	165.0	16
37265	YELLOWFLEX 4G1.5	11.5	58.0	200.0	16
37266	YELLOWFLEX 5G1.5	12.0	72.0	241.0	16
37267	YELLOWFLEX 7G1.5	16.5	101.0	375.0	16
37268	YELLOWFLEX 12G1.5	18.3	175.0	460.0	16
37269	YELLOWFLEX 2X2.5	11.0	48.0	194.0	14
37270	YELLOWFLEX 3G2.5	11.8	72.0	235.0	14
37271	YELLOWFLEX 4G2.5	12.7	96.0	290.0	14
37272	YELLOWFLEX 5G2.5	14.1	120.0	347.0	14
37273	YELLOWFLEX 2X4	13.0	77.0	282.0	12
37274	YELLOWFLEX 3G4	14.1	115.0	322.0	12
37275	YELLOWFLEX 4G4	15.8	154.0	397.0	12
37276	YELLOWFLEX 5G4	17.1	192.0	486.0	12
37277	YELLOWFLEX 4G6	18.2	230.0	541.0	10
37278	YELLOWFLEX 5G6	19.1	288.0	652.0	10
37279	YELLOWFLEX 4G10	23.0	384.0	952.0	8
37280	YELLOWFLEX 5G10	25.8	480.0	1203.0	8
37281	YELLOWFLEX 4G16	26.3	614.0	1260.0	6
37282	YELLOWFLEX 5G16	29.1	768.0	1550.0	6
37283	YELLOWFLEX 4G25	31.7	960.0	1860.0	4
37284	YELLOWFLEX 5G25	35.2	1200.0	2250.0	4
37285	YELLOWFLEX 4G35	36.8	1344.0	2374.0	2
37286	YELLOWFLEX 5G35	40.6	1680.0	2752.0	2

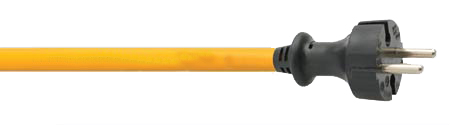

YELLOWFLEX is also available as pre-assembled cable. YELLOWFLEX is also available as pre-assembled cable.

We can also have your company name printed on these cables.
Cables with print

Technical Data

Helukabel

Special rubber outer jacket cable acc. to DIN VDE 0282 Part 4, HD 22.4 S4
Temperature Range
Flexing
-25°C to +100°C (-13°F to +212°F)
Fixed Installation
-50°C to +100°C (-58°F to +212°F)
Permissible Operating Temperature
At conductor +90°C/+194°F
Nominal Voltage U₀/U 450/750 V
With protected fixed installation
U₀/U 600/1000 V

Highest permissible Operating Voltage
in three-phase and one-phase
A.C. systems U₀/U 476/825 V
in d.c. systems U₀/U 619/1238 V
Test Voltage 3000 V
Minimum Bending Radius
Flexible up to 12 mm cable Ø: 3x cable Ø
greater than 12 mm cable Ø: 4 x 6 cable Ø

Approvals

Cable Construction

Bare copper conductor, fine wire to DIN VDE 0295 cl. 5, BS 6360 cl. 5, IEC 60228 cl. 5 and/or HD 383
Rubber conductor insulation, EPR/EPDM adapted to DIN VDE 0207 part 20
Conductor identification to DIN VDE 0293-308
Conductors stranded in layers with optimal lay-length
Special outer jacket, cross-linked
Jacket color: Yellow (RAL 1021)
Individual Printing:
Article numbers for individual printing:
Art. No. 37359 for 3G1.5 mm²
Art. No. 37360 for 3G2.5 mm²
Art. No. 37361 for 5G1.5 mm²
Art. No. 37362 for 5G2.5 mm²
Usual length:
500m or 1000m drum

Application

These robust special rubber outer jacket cables can be used where high demands are placed on temperature range, flexibility and mechanical stress. For application on construction sites, in steel works and rolling mills in heating and air-conditioning systems, in the bottling industry, in machinery and plant construction, in the chemical industry and painting systems, as well as for the professional and the hobby enthusiast. The choice of yellow as the jacket color ensures additional safety. Can be used in potentially explosive areas acc. to DIN VDE 0165.
= The product is conformed with the EC Low-Voltage Directive 73/23/EEC and 93/68/EEC.

Properties

Flame-retardant acc. to VDE 0482-332-1-2, DIN EN 60332-1-2 / IEC 60332-1 (equivalent DIN VDE 0472 part 804 test method B)
High flexibility at low temperatures
Increased stability
Tear-resistant
Resistant to
Atmospheric influences
Ozone
Hydrolysis
UV-radiation
Largely resistant to
Oils and fats
The materials used in manufacture are cadmium-free, contain no silicone and are free from substances harmful to the wetting properties of lacquers
