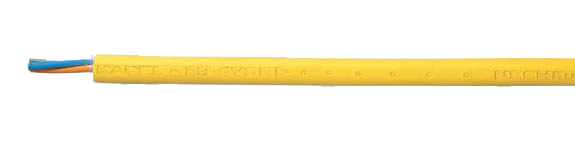

Helukabel Rubber Cable: NSSHÖU

Heavy Duty Rubber Cable for Mining Work, 0.6/1 kV

Hi-Tech Controls, Inc, HELUKABEL wires and cables

NSSHÖU heavy duty rubber cable for mining working, 0.6/1 kV, Hi-Tech Controls, Helukabel
No. of Conductors Selection
1
1
2
2
3
3
4
4
5
5
7
7
10
10
12
12
18
18
19
19

Helukabel
Part-No.
Description & No. Conductors x cross-sec. mm2 Outer
Diameter
Cop. weight
kg/km
Weight
ca. kg/km
AWG
38001 NSSHÖU 1 X 16
11.5 154.0 336.0 6
38002 NSSHÖU 1 X 25 14.5 240.0 473.0 4
38003 NSSHÖU 1 X 35 15.5 336.0 635.0 2
38004 NSSHÖU 1 X 50 18.0 480.0 866.0 1
38005 NSSHÖU 1 X 70 20.5 672.0 1145.0 2/0
38006 NSSHÖU 1 X 95 23.0 912.0 1475.0 3/0
38007 NSSHÖU 1 X 120 25.0 1152.0 1832.0 4/0
38008 NSSHÖU 1 X 150 28.0 1440.0 2000.0 300 kcmil
38009 NSSHÖU 1 X 185 30.0 1776.0 2450.0 350 kcmil
38010 NSSHÖU 1 X 240 33.0 2304.0 3190.0 500 kcmil

38011 NSSHÖU 2 X 2.5
13.2 48.0 205.0 14

38012 NSSHÖU 3 G 1.5
12.5 43.0 173.0 16
38013 NSSHÖU 3 G 2.5 14.0 72.0 247.0 14
38014 NSSHÖU 3 G 4 16.8 115.0 336.0 12
38015 NSSHÖU 3 G 6 18.1 173.0 520.0 10

38016 NSSHÖU 4 G 1.5
13.0 58.0 210.0 16
38017 NSSHÖU 4 G 2.5 16.0 96.0 305.0 14
38018 NSSHÖU 4 G 4 18.0 154.0 415.0 12
38019 NSSHÖU 4 G 6 19.5 230.0 641.0 10
38020 NSSHÖU 4 G 10 24.0 384.0 1113.0 8
38021 NSSHÖU 4 G 16 28.5 614.0 1412.0 6
38022 NSSHÖU 4 G 25 35.0 960.0 2095.0 4
38023 NSSHÖU 4 G 35 37.0 1344.0 2777.0 2
38024 NSSHÖU 4 G 50 44.5 1920.0 3817.0 1
38025 NSSHÖU 4 G 70 47.0 2688.0 5071.0 2/0
38026 NSSHÖU 4 G 95 54.0 3648.0 6636.0 3/0
38027 NSSHÖU 4 G 120 60.0 4608.0 7000.0 4/0

38028 NSSHÖU 5 G 1.5
14.1 72.0 252.0 16
38029 NSSHÖU 5 G 2.5 17.2 120.0 362.0 14
38030 NSSHÖU 5 G 4 19.0 192.0 509.0 12
38031 NSSHÖU 5 G 6 21.5 288.0 798.0 10
38035 NSSHÖU 5 G 10 25.0 480.0 1120.0 8
38036 NSSHÖU 5 G 16 31.0 768.0 1680.0 6
38037 NSSHÖU 5 G 25 36.5 1200.0 2430.0 4

Helukabel
Part-No.
Description & No. Conductors x cross-sec. mm2 Outer
Diameter
Cop. weight
kg/km
Weight
ca. kg/km
AWG
38038 NSSHÖU 7 G 1.5
17.5 101.0 470.0 16
38032 NSSHÖU 7 G 2.5 18.5 168.0 546.0 14

38039 NSSHÖU 10 G 1.5
19.8 144.0 560.0 16

38033 NSSHÖU 12 G 2.5
24.0 288.0 851.0 14

38040 NSSHÖU 18 G 2.5
28.7 432.0 1230.0 14

38034 NSSHÖU 19 G 2.5
29.2 466.0 1260.0 14

We can also have your company name printed on these cables.
Cables with print
Technical Data Helukabel
  • Rubber jacket cable to DIN VDE 0250 part 812
  • Temperature Range
    Flexing
    -25°C to +80°C (-13°F to +176°F)
    Fixed Installation
    -40°C to +80°C (-40°F to +176°F)
  • Permissible Operating Temperature
    at conductor +80°C/+176°F
  • Nominal Voltage U0/U 0.6/1 kV
  • Operating Voltage
    Three-phase and one-phase a.c.
    U0/U 0.7/1.2 kV
    Direct current system
    U0/U 0.9/1.8 kV
  • Test Voltage 3000 V
  • Insulation Resistance
    Min. 20 MOhm x km
  • Tensile Strength
    Static load:
    total cross-section x15 N/mm²
  • Minimum Bending Radius
    Fixed installation 4x cable Ø
    Flexing 10x cable Ø
    Without forced operation 15x cable Ø
Approvals
RoHSCE VDE
Cable Construction
  • Tinned copper conductor, fine wire stranded to DIN VDE 0295 cl. 5, BS 6360 cl. 5 and IEC 60228 cl. 5
  • Rubber insulation 3GI3 (EPR) to DIN VDE 0207 part 20
  • Green-yellow ground conductor: 3-conductors and above
  • Conductor identification: one green-yellow ground conductor and black conductors with continuous white numbering to DIN VDE 0293-308. The basic-line makes the individual conductors recognizable.
  • Conductors stranded (multi conductors)
  • Rubber inner jacket, GM1b, rubber-compound to DIN VDE 0207 part 21
  • Outer jacket, rubber-compound 5GM5 to DIN VDE 0207 part 21
  • Color: Yellow
  • Imprint on outer jacket:
    VDE Reg. No., type, number of conductors and cross-section
Application

Are suited as a connecting cable for very high mechanical stress in underground mining and tools, for use in industries and outdoors. They are also used for the mining industry: surface mining, stone-pits, on building sites, outdoors as well as indoors. Suitable for fixed installation on plaster in dry, damp and wet areas. A long duration of life is guaranteed under extreme operating conditions. Not suitable for drumming and use in all types of machinery, such as robots, handling units and energy transfer units, where constant mobility is essential. The insulation of a plastic-rubber compound on EPR basis improves the resistance to ozone in order to avoid the formation of cracks due to ozone and insulation damages in switch-boards.
CE Approval = The product is conformed with the EC Low-Voltage Directive 2006/95/EG.

Properties
  • Ozone resistance
  • High insulation resistance
  • Heat resistant
  • Low abrasion
  • High notch resistant
  • Resistant against
    oils, fats and chemicals
  • Test of oil resistance to DIN VDE 0472 part 803, test method A
  • Behavior in fire
    according to DIN VDE 0482-332-1-2, DIN EN 60332-1-2 / IEC 60332-1 (equivalent DIN VDE 0472 part 804 test method B)
  • The code identification of a single conductor jacket of an insulated wire is black. For application as a protective conductor, the ends are to be identified with green-yellow and the middle conductor with light blue.
Note
  • G = with green-yellow ground conductor
    x = without green-yellow ground conductor
  • AWG sizes are approximate equivalent values. The actual cross-section is in mm².
