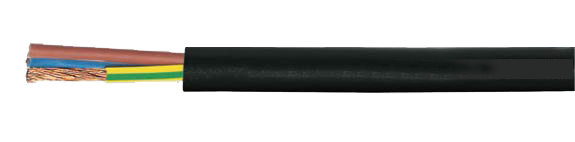

All-weather, Rubber Cable: H07 RN-F

Heavy Rubber Outer Jacket, Harmonized Type

Hi-Tech Controls, Inc, HELUKABEL wires and cables

H07 RN-F rubber outer jacket, harmonized type, Hi-Tech Controls, Helukabel

No. of Conductors Selection
1
1
2
2
3
3
4
4
5
5
7
7
12
12
18
18
19
19
24
24

Helukabel
Part-No.
Description & No. Conductors x cross-sec. mm2 Outer
Diameter
mm
Cop. weight
kg/km
Weight
ca. kg/km
AWG
37001 H07RN-F 1X1.5   5.7 - 7.1 14.4 58.0 16
37002 H07RN-F 1X2.5 6.3 - 7.9 24.0 71.0 14
37003 H07RN-F 1X4 7.2 - 9.0 38.0 100.0 12
37004 H07RN-F 1X6 7.9 - 9.8 58.0 130.0 10
37005 H07RN-F 1X10 9.5 - 11.9 96.0 230.0 8
37006 H07RN-F 1X16 10.8 - 13.4 154.0 290.0 6
37007 H07RN-F 1X25 12.7 - 15.8 240.0 420.0 4
37008 H07RN-F 1X35 14.3 - 17.9 336.0 530.0 2
37009 H07RN-F 1X50 16.5 - 20.6 480.0 750.0 1
37010 H07RN-F 1X70 18.6 - 23.3 672.0 960.0 2/0
37011 H07RN-F 1X95 20.8 - 26.0 912.0 1250.0 3/0
37012 H07RN-F 1X120 22.8 - 28.6 1152.0 1560.0 4/0
37013 H07RN-F 1X150 25.2 - 31.4 1440.0 1900.0 300 kcmil
37014 H07RN-F 1X185 27.6 - 34.4 1776.0 2300.0 350 kcmil
37015 H07RN-F 1X240 30.6 - 38.3 2304.0 2950.0 500 kcmil
37016 H07RN-F 1X300 33.5 - 41.9 2880.0 3600.0 600 kcmil
37017 H07RN-F 1X400 37.4 - 46.8 3840.0 4600.0 750 kcmil
37018 H07RN-F 1X500 41.3 - 52.0 4800.0 6000.0 1000 kcmil

37019 H07 RN-F 2X1   7.7 - 10.0 19.0 98.0 17
37020 H07 RN-F 2X1.5 8.5 - 11.0 29.0 135.0 16
37021 H07 RN-F 2X2.5 10.2 - 13.1 48.0 193.0 14
37022 H07 RN-F 2X4 11.8 - 15.1 77.0 280.0 12
37023 H07 RN-F 2X6 13.1 - 16.8 115.0 330.0 10
37024 H07 RN-F 2X10 17.7 - 22.6 192.0 586.0 8
37025 H07 RN-F 2X16 20.2 - 25.7 307.0 810.0 6
37026 H07 RN-F 2X25 24.3 - 30.7 480.0 1160.0 4

Helukabel
Part-No.
Description & No. Conductors x cross-sec. mm2 Outer
Diameter
mm
Cop. weight
kg/km
Weight
ca. kg/km
AWG
37027 H07RN-F 3G1   8.3 - 10.7 29.0 130.0 17
37028 H07RN-F 3G1.5 9.2 - 11.9 43.0 165.0 16
37029 H07RN-F 3G2.5 10.9 - 14.0 72.0 235.0 14
37030 H07RN-F 3G4 12.7 - 16.2 115.0 320.0 12
37031 H07RN-F 3G6 14.1 - 18.0 173.0 420.0 10
37032 H07RN-F 3G10 19.1 - 24.2 288.0 810.0 8
37033 H07RN-F 3G16 21.8 - 27.6 461.0 1050.0 6
37034 H07RN-F 3G25 26.1 - 33.0 720.0 1250.0 4
37035 H07RN-F 3G35 29.3 - 37.1 1008.0 1900.0 2
37036 H07RN-F 3G50 34.1 - 42.9 1440.0 2600.0 1
37037 H07RN-F 3G70 38.4 - 48.3 2016.0 3400.0 2/0
37038 H07RN-F 3G95 43.3 - 54.0 2736.0 4450.0 3/0
37039 H07RN-F 3G120 47.4 - 60.0 3456.0 5180.0 4/0
37040 H07RN-F 3G150 52.0 - 66.0 4320.0 6500.0 300 kcmil
37041 H07RN-F 3G185 57.0 - 72.0 5328.0 7860.0 350 kcmil
37042 H07RN-F 3G240 65.0 - 82.0 6192.0 10224.0 500 kcmil
37043 H07RN-F 3G300 72.0 - 90.0 8640.0 12620.0 600 kcmil

37044 H07 RN-F 4G1   9.2 - 11.9 38.0 150.0 17
37045 H07 RN-F 4G1.5 10.2 - 13.1 58.0 200.0 16
37046 H07 RN-F 4G2.5 12.1 - 15.5 96.0 290.0 14
37047 H07 RN-F 4G4 14.0 - 17.9 154.0 395.0 12
37048 H07 RN-F 4G6 15.7 - 20.0 230.0 540.0 10
37049 H07 RN-F 4G10 20.9 - 26.5 384.0 950.0 8
37050 H07 RN-F 4G16 23.8 - 30.1 614.0 1260.0 6
37051 H07 RN-F 4G25 28.9 - 36.6 960.0 1860.0 4
37052 H07 RN-F 4G35 32.5 - 41.1 1344.0 2380.0 2
37053 H07 RN-F 4G50 37.7 - 47.5 1920.0 3190.0 1
37054 H07 RN-F 4G70 42.7 - 54.0 2688.0 4260.0 2/0
37055 H07 RN-F 4G95 48.4 - 61.0 3648.0 5600.0 3/0
37056 H07 RN-F 4G120 53.0 - 66.0 4608.0 6830.0 4/0
37057 H07 RN-F 4G150 58.0 - 73.0 5760.0 8320.0 300 kcmil
37058 H07 RN-F 4G185 64.0 - 80.0 7104.0 9800.0 350 kcmil
37059 H07 RN-F 4G240 72.0 - 91.0 9216.0 12100.0 500 kcmil
37060 H07 RN-F 4G300 80.0 - 101.0 11520.0 15200.0 600 kcmil

Helukabel
Part-No.
Description & No. Conductors x cross-sec. mm2 Outer
Diameter
mm
Cop. weight
kg/km
Weight
ca. kg/km
AWG
37061 H07RN-F 5G1.5   11.2 - 14.4 72.0 240.0 16
37062 H07RN-F 5G2.5 13.3 - 17.0 120.0 345.0 14
37063 H07RN-F 5G4 15.6 - 19.9 192.0 485.0 12
37064 H07RN-F 5G6 17.5 - 22.2 288.0 650.0 10
37065 H07RN-F 5G10 22.9 - 29.1 480.0 1200.0 8
37066 H07RN-F 5G16 26.4 - 33.3 768.0 1550.0 6
37067 H07RN-F 5G25 32.0 - 40.4 1200.0 2250.0 4
37068 H07RN-F 5G35 36.8 - 45.8 1680.0 2750.0 2
37091 H07RN-F 5G50 40.0 - 50.8 2400.0 3950.0 1

37092 H07 RN-F 7G1.5   14.5 - 17.5 101.0 375.0 16
37079 H07 RN-F 7G2.5 16.5 - 20.0 168.0 520.0 14

37093 H07 RN-F 12G1.5   17.6 - 22.4 175.0 460.0 16
37096 H07 RN-F 12G2.5 20.6 - 26.2 288.0 760.0 14

37097 H07 RN-F 18G2.5   24.4 - 30.9 432.0 850.0 14
37094 H07 RN-F 19G1.5   20.7 - 26.3 274.0 810.0 16
37098 H07 RN-F 19G2.5 25.5 - 31.0 456.0 1075.0 14

37095 H07RN-F 24G1.5   24.3 - 30.7 346.0 1015.0 16
37099 H07RN-F 24G2.5 28.8 - 36.4 576.0 1390.0 14
Current ratings for H07 RN-F (H07RN-F) for current supply in industrial application
Operating temperature at conductor +60°C/+140°F, ambient temperature +30°C/+86°F (Air)
Number of Conductors 1-conductor 2-conductor 3-conductor 3-conductor 4-conductor 5-conductor
Number of
loaded conductors
2 loaded 3 loaded 2 loaded 2 loaded 3 loaded 3 loaded 3 loaded
Cross-section in mm2 Current ratings in Ampere
4 34 30 34 35 29 30 30
6 43 38 43 44 36 37 38
10 60 53 60 62 51 52 54
16 79 71 79 82 67 69 71
25 104 94 105 109 89 92 94
35 129 117 - 135 110 114 -
50 162 148 - 169 138 143 -
70 202 185 - 211 172 178 -
95 240 222 - 250 204 210 -
120 280 260 - 292 238 246 -
150 321 300 - 335 273 282 -
185 363 341 - 378 309 319 -
240 433 407 - 447 365 377 -
300 497 468 - 509 415 430 -
400 586 553 - - - - -
500 670 634 - - - - -
630 784 742 - - - - -
Note
For the method of installation
  • Single conductor cables are bunched
  • 2-conductor cables laid parallel with contact
  • 3-conductor cables are in triangle-form

Conversion factors for deviating ambient temperature
Ambient temperature at air °C/°F 30/86 35/95 40/104 45/113 50/122 55/131
Factor 1.0 0.91 0.82 0.71 0.58 0.41

We can also have your company name printed on these cables.
Cables with print
Technical Data Helukabel
  • Rubber outer jacket cable H07RN-F to DIN VDE 0282 part 4, HD 22.4 S3 IEC 60245-4
  • Temperature Range
    -30°C to +60°C (-22°F to +140°F)
  • Permissible Operating Temperature
    at conductor +60°C/+140°F
  • Nominal Voltage U0/U 450/750 V
    In case of protected and fixed installation
    U0/U 600/1000 V
  • Max. permissible Operating Voltage in
    three phase and one phase a.c. system
    U0/U 476/825 V
    direct current-system U0/U 619/1238 V
  • Test Voltage 2500 V
  • Permanent Tensile Load
    Max. 15 N/mm²
  • Minimum Bending Radius
    For fixed installation 4x cable Ø
    For guiding over roller 7.5x cable Ø
    During winding on drums 5-7x cable Ø
Approvals
RoHSCE VDEPCT
Cable Construction
  • Copper conductor fine wire stranded, bare to DIN VDE 0295 cl. 5, BS 6360 cl. 5, IEC 60228 cl. 5 and HD 383
  • Rubber conductor insulation EI4 to DIN VDE 0282 part 1
  • Insulation thickness to DIN VDE 0282 part 4
  • Conductor identification to DIN VDE 0293-308 and HD 186
  • Conductor colors
    up to 5 conductors - one color
    6 and more conductors - black with numbering
    3 and above - with green-yellow earth conductor
    2 conductors without green-yellow grounding conductor
  • Conductors stranded in layers with optimal lay-length
  • Outer jacket (rubber): Black, rubber compound to DIN VDE 0282 part 1
  • Jacket thickness to DIN VDE 0282 part 4
Application

Heavy duty rubber-outer jacket flexible cables are suited for use for medium mechanical stress in dry, damp and wet areas as well as in open air and in agriculture plants.
They are used for equipment in industry works such as boilers, heating plates, hand lamps, electric tools such as drills, circular saws and tools for home use as well as for transportable motors or machines at site.
These cables are also suitable for fixed installation on plaster, in temporary buildings and residential barracks. They are suitable for direct laying on components and mechanical parts of machines, for example lifts and cranes.
They can be used in case of protected and fixed installation in tubes or in equipment as well as rotor connecting cable of motors with a working voltage up to 1000 V alternating voltage or a direct voltage up to 750 V against ground. The operating direct voltage is permitted up to 900 V against ground when they are used in rail-coaches. Installation in hazardous areas according to DIN VDE 0165 is allowed.
CE Approval = The product is conformed with the EC Low-Voltage Directive 2006/95/EG.

Properties
  • Resistant to
    Ozone
    Weather
  • Oil resistant
    Test according to VDE 0482-332-1-2, DIN EN 60332-1-2 / IEC 60332-1 (equivalent DIN VDE 0472 part 804 test method B)
  • Ozone resistant of the insulation to DIN VDE 0472 part 805, test method A or part 805 A1, test method C
  • Oil resistant - Test according to EN 60811-2-1
Note
  • G = with green-yellow ground conductor
    x = without green-yellow ground conducto.
  • AWG sizes are approximate equivalent values. The actual cross-section is in mm².
  • Further dimensions and cross-sections available upon request
  • H07 RN-F = harmonized cable with rubber outer jacket, working voltage 750V, fine stranded
  • The core identification of a single core jacketed insulated wire is black. For application as a protective conductor, the ends are to be identified with green-yellow and the middle conductor with light blue.
Cable Accessories
  • Coming Soon!
Cable Technical Data Construction and ApplicationProperties and Note Accessories
quote
Items For Quote


quote
box

Sealcon is the Exclusive Importer of HUMMEL products. We offer over 6,000 different Types and Sizes of RoHS Compliant Liquid Tight Strain Relief Fittings, Cord Grips, Cable Glands, Circular Connectors, Conduit System, Industrial Enclosures and Other Related Cable Management Products which are rated the best in the industry.
Liquid Tight Strain Relief, Cord Grips, Cable Gland FittingsLiquid Tight Strain Relief Fittings, Cord Grips, Cable Glands
Threads: PG, NPT, Metric, BSPP Threads
Materials: Nylon, Nickel Plated Brass, PVDF (for chemicals and extreme temperatures) & Stainless Steel, NEMA 4x and 6 (IP68, IP 69K).
Approvals: RoHS, Deca BDE, UR, UL, CE, CSA, VDE, German Lloyd, etc.
UL f1 (UL 746C) - Suitable for outdoor use with respect to exposure to ultraviolet light, water exposure and immersion in accordance with UL 746C
Circular ConnectorsCircular Connectors (M16, M23, RJ45, M27 and M40)
Sizes: M16 Signal, M23 Signal & Power, M27 Signal, M40 Power, M12/16 Twintus
Types: Twintus, RJ45 Industrial Ethernet, PoE Fast Ethernet, Push-Pull, Stainless Steel, Over Molded Cordsets, Standard/EMI Ready
Configurations: Signal (3-28 pole) & Power (6 & 8 pole)
Materials: Nickel Plated Brass, Stainless Steel and Aluminum
Approvals: RoHS, Deca BDE, UR, UL, CSA, TÜV, etc.
Hummel EnclosuresIndustrial Enclosures (Plastic & Metal)
Materials: Polycarbonate, ABS (Acryl-Butadiene-Styrene), Aluminum, Steel/Stainless Steel and Polyester.
Types: Gray or Transparent Lids, available with Hinges and Latches, Plain Walls or Knockouts.
Approvals: RoHS, Deca BDE, UL, CSA, TUV and CE. Modular, Expandable, UV and Impact Resistant, NEMA 4, 4x (IP 66/67). Solar Plus for Photovoltaic applications.
Our Enclosures can be equipped with Strain Relief Fittings, Circular Connectors or Conduit Fittings. Other customization options like cutting & drilling are also available.
Conduit SystemConduit System
High Pull-Out Resistance, Robust Performance, Long Life Expectancy, Fastest/ Easy installation, No Tools required!
Fittings:
Push-In, Turn-to-Seal, Snapclic DUO (Nylon or Nickel Plated Brass), Double-Seal, Flange/Bulkhead
Conduit:
Standard and Super Flex Corrugated Conduit
Accessories: Snap-In Mounting Brackets. NEMA 4 (IP 54/65)
Approvals: RoHS, Deca BDE, UR, German Lloyd, CE, etc.
Hazardous Location / Explosive Proof Cord Grips, Cable GlandsHazardous Location / Explosive Proof Cord Grips, Cable Glands
These fittings are labeled and approved to withstand the required needs of a combustible environment.
Materials: Nylon, Nickel Plated Brass, PVDF (chemical resistant & extreme temperatures), Stainless Steel.
Threads: NPT, Metric & PG. NEMA 4x (IP 67) and 6 (IP 68/69K)
Approvals:
RoHS, Deca BDE, UL, CSA, VDE, CE, EEx e, ATEX, German Lloyd, IECEx,
Ex-d/Ex-e, Ex-i
EXIOS - High-end Cable Glands for armored cables in hazardous areas including the latest IECEx and ATEX certifications, for use in Ex-e, Ex-d and Ex-tD areas
Adapters, Enlargers, ReducersThread Adapters, Enlargers, Reducers
Convert, Increase or Decrease your thread size with our newest product line of Adapters, Enlargers and Reducers.
Threads: NPT, Metric and PG.
Materials: Black or Gray Nylon, Nickel Plated Brass, Aluminum, Stainless Steel.
Approvals: RoHS, Deca BDE, CE, EEe x, ATEX, etc.
Hazardous / Explosive proof versions available.
Cable AccessoriesCable Accessories
Locking Nuts:Black & Gray Nylon, Nickel Plated Brass, Zinc Plated Steel, EMI (w/ Cutting Edges)
O-Rings: Buna-N, Viton®, Silicone
Seal Rings: Polyethylene / Fiber-reinforced Plastic
Hole Plugs: Dome, Hex, Nylon, Nickel Plated Brass
Inserts: Standard, Reduced, Multi-Hole, Romex®
Other Accessories: Ratchet & Socket Wrenches, Cable Clamps, etc.
7374 S. Eagle Street
Centennial, CO 80112-4221 USA
Toll Free: 800-677-8942 / 303-680-5159 FAX: 303-680-5344
Valid XHTML 1.0 Transitional
To Top of Page Top of Page

Copyright © 2012 Hi-Tech Controls Inc. All Rights Reserved
|Cables: Domestic & International|Enclosures (Plastic & Metal)|Liquid Tight Strain Relief Fittings & Accessories|
|Circular Connectors|Conduit System|camozzi Pneumatics|Cable Index|Enclosure Index|Search|
|Media|Site Map|Company Overview|Contact|Privacy Policy|Copyright Notice|
